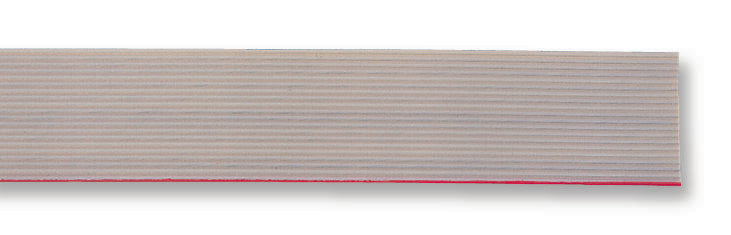

3M - HF365/04SF - Ribbon Cable, LSZH Round Conductor, Splice Free, HF365 Series, Unscreened, 4 Core, 28 AWG, 100 ft
- Cable Shielding: Unscreened
- No. of Cores: 4Core
- Wire Gauge: 28AWG
- Conductor Area CSA: -
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- Cable Width: -
- No. of Max Strands x Strand Size: 7 x 0.127mm
- Pitch Spacing: 1.27mm
- Voltage Rating: 50V
- Conductor Material: Tinned Copper
- Jacket Material: Polyolefin, Zero Halogen
- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: HF365 Series
