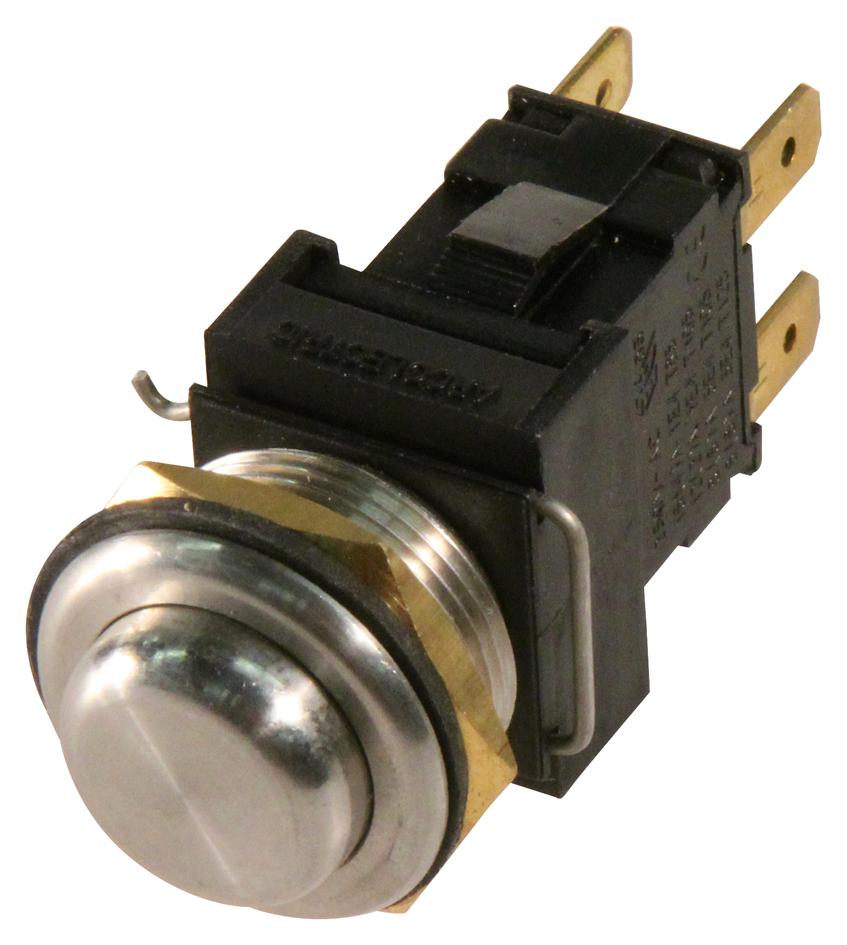

ARCOLECTRIC (BULGIN LIMITED) - H8350RPAAA - Vandal Resistant Switch, 8300, 19.2 mm, DPST, On-Off, Round Raised, Natural
- Contact Configuration: DPST
 - Actuator / Cap Colour: Natural
 - Product Range: 8300 Series
 - Switch Operation: On-Off
 - Illumination Colour: Non-illuminated
 - Switch Terminals: Quick Connect
 - Contact Current Max: 16A
 - Contact Voltage AC Max: 250V
 - Operating Force: -
 - Contact Voltage DC Max: -
 - SVHC: No SVHC (27-Jun-2018)
 - Approval Bodies: CSA, ENEC, UL
 - Bezel Diameter: 21.5mm
 - Body Depth: 17mm
 - Body Width: 15mm
 - Contact Current AC Max: 16A
 - Contact Current Rating: 13A
 - Contact Resistance: 100mohm
 - Contact Voltage VAC: 250V
 - Current Rating: 13A
 - External Length / Height: 43mm
 - IP / NEMA Rating: IP66
 - IP Rating: IP66
 - Insulation Resistance: 20Mohm
 - No. of Electrical Operations: 10000
 - No. of Mechanical Operations: 50000
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: 0°C
 - Panel Cutout Diameter: 19.2mm
 - Pushbutton Actuator Style: Raised Round
 - Pushbutton Switch Type: Anti-Vandal
 - Switch Mounting: Panel
