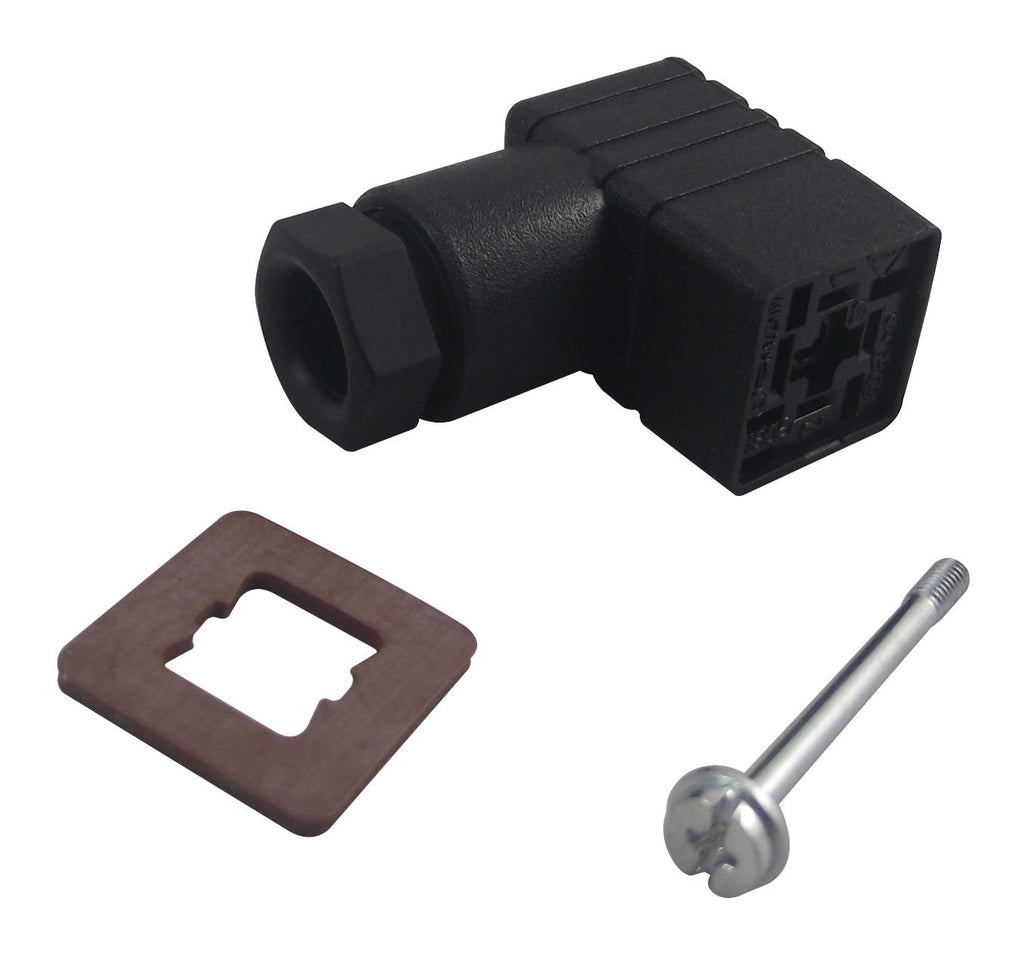

HIRSCHMANN - GDSN207.BLACK - Rectangular Power Connector, 2+E, 2 Contacts, Cable Mount, Screw, Receptacle
- No. of Contacts: 2Contacts
 - Product Range: -
 - Connector Mounting: Cable Mount
 - Contact Termination Type: Screw
 - Pitch Spacing: -
 - Gender: Receptacle
 - Contact Gender: Socket
 - Contact Material: Brass
 - Contact Plating: Tin Plated Contacts
 - Connector Shell Size: -
 - No. of Rows: -
 - SVHC: Lead (27-Jun-2018)
 - Approval Bodies: CSA, DSRK, SEV, UL, UR
 - Body Plating: Tin
 - Cable Diameter Max: 6mm
 - Cable Diameter Min: 3.5mm
 - Colour: Black
 - Connector Type: Rectangular Power
 - Contact Resistance: 4mohm
 - Contact Termination: Screw
 - Current Rating: 16A
 - External Depth: 26mm
 - External Length / Height: 38mm
 - IP / NEMA Rating: IP65
 - Lead Spacing: 8mm
 - Material: Polyamide
 - Operating Temperature Max: 125°C
 - Operating Temperature Min: -40°C
 - Standard: DIN EN 175 301-803-C
 - Termination Method: Screw
 - Thread Type: PG7
 - Voltage Rating V DC: 250V
 - Voltage Rating VAC: 250V
 - Working Voltage: 250V
