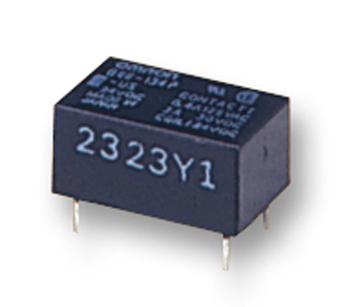

OMRON - G6E-134PL-ST-US DC5 - Signal Relay, 5 VDC, SPDT, 2 A, G6E, Through Hole, Non Latching
- Coil Voltage: 5VDC
- Contact Configuration: SPDT
- Contact Current: 2A
- Product Range: G6E Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver
- Coil Resistance: 63ohm
- Approvals & Standards: CSA, UL
- Coil Current: 40mA
- Coil Power Continuous: 200mW
- Coil Voltage VDC Nom: 5V
- Contact Current Max: 3A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 220V
- External Depth: 16mm
- External Height: 8mm
- External Width: 10mm
