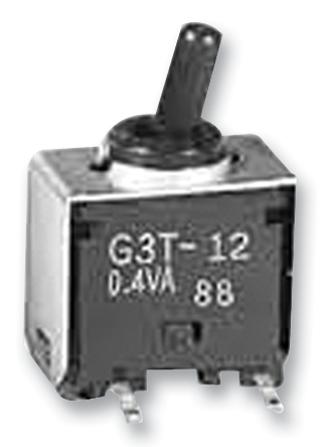

NKK SWITCHES - G3T12AP - Toggle Switch, On-Off, SPDT, Non Illuminated, Surface Mount
- Switch Operation: On-Off
 - Contact Configuration: SPDT
 - Illumination: Non Illuminated
 - Product Range: -
 - Contact Current Max: -
 - Switch Mounting: SMD
 - Contact Voltage AC Nom: 28V
 - Switch Terminals: Solder
 - Contact Voltage DC Nom: 28V
 - SVHC: No SVHC (15-Jan-2019)
 - Actuation Type: Lever
 - Bush Diameter: 4mm
 - Bush Thread Length: 1.5mm
 - Contact Current AC Max: 100mA
 - Contact Current DC Max: 100mA
 - Contact Resistance Max: 80mohm
 - Contact Voltage AC Max: 28VAC
 - Contact Voltage AC Min: 20mV
 - Contact Voltage DC Max: 28VDC
 - Contact Voltage DC Min: 20mV
 - External Depth: 5mm
 - External Width: 8.5mm
 - Height: 9mm
 - Insulation Resistance: 500Mohm
 - Insulation Resistance Voltage: 500VDC
 - Lever Length: 3.8mm
 - Material: Polyphenylene sulfide
 - No. of Electrical Operations: 50000
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -30°C
 - Shaft Diameter: 1.7mm
 - Switching Current AC Max: 0.1A
 - Switching Current AC Min: 0.1mA
 - Switching Current DC Max: 0.1A
 - Switching Current DC Min: 0.1mA
 - Switching Power Max: 0.4VA
