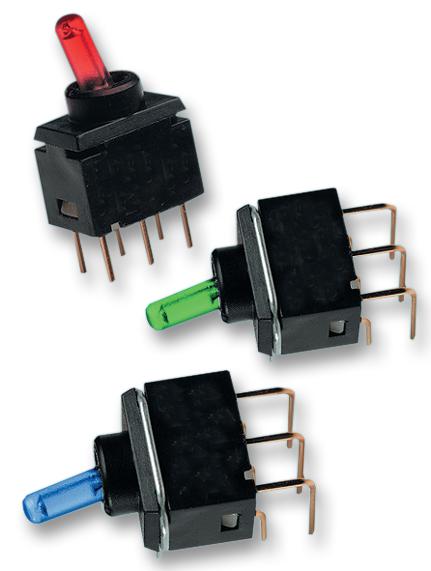

NKK SWITCHES - G12JPCF - Toggle Switch, On-Off, SPDT, Illuminated, G, Panel Mount, 100 mA
- Switch Operation: On-Off
- Contact Configuration: SPDT
- Illumination: Illuminated
- Product Range: G Series
- Contact Current Max: 100mA
- Switch Mounting: Panel
- Contact Voltage AC Nom: 28V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 28V
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Lever
- Colour: Red / Green
- Contact Current @ Contact Voltage AC Max: 0.1A
- Contact Current @ Contact Voltage DC Max: 0.1A
- Contact Current AC Max: 0.1A
- Contact Current DC Max: 100mA
- Contact Resistance: 80mohm
- Contact Resistance Max: 80mohm
- Contact Voltage AC Max: 28V
- Contact Voltage DC Max: 28V
- Dielectric Strength VDC: 500VAC
- External Depth: 7mm
- External Length / Height: 13.4mm
- External Width: 4.5mm
- Height: 13.4mm
- Insulation Resistance: 500Mohm
- Lever Length: 3.8mm
- No. of Mechanical Operations: 100000
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 4mm
- Switching Power Max: 0.4VA
