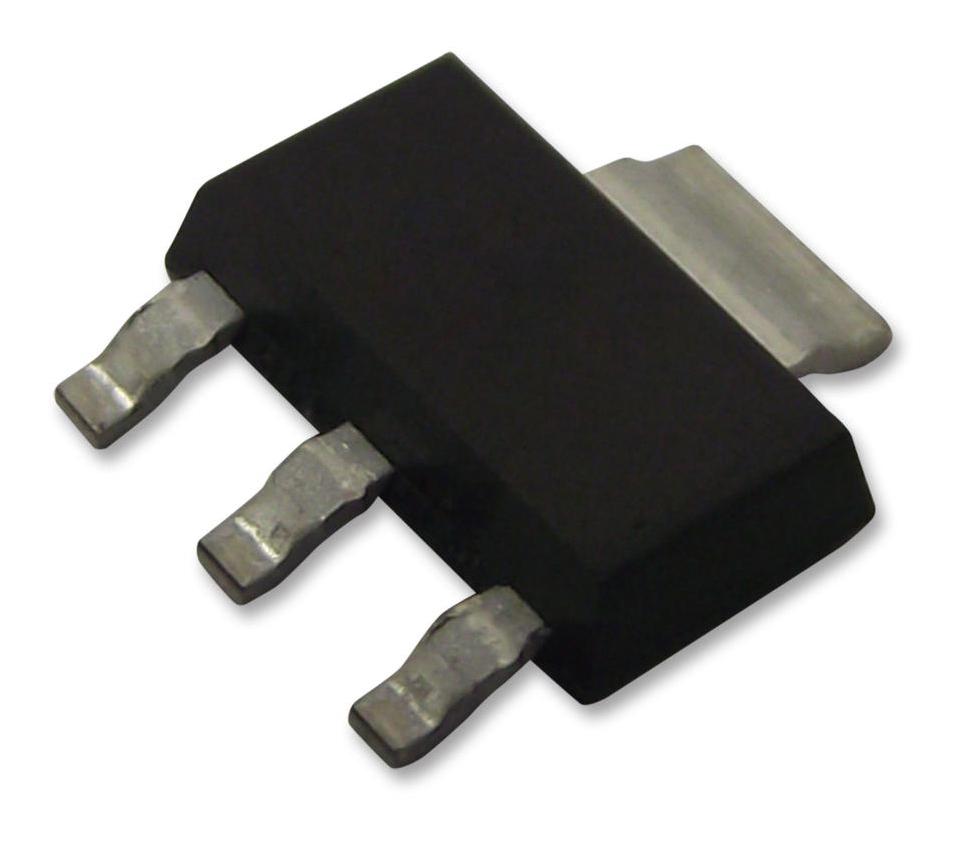

DIODES INC. - FZT857 - Bipolar (BJT) Single Transistor, NPN, 300 V, 3.5 A, 3 W, SOT-223, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 300V
- Transition Frequency ft: 80MHz
- Power Dissipation Pd: 3W
- DC Collector Current: 3.5A
- DC Current Gain hFE: 200hFE
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 100mV
- Continuous Collector Current Ic Max: 3.5A
- Current Ic Continuous a Max: 3.5A
- Current Ic Hfe NPN Device: 500mA
- Current Ic hFE: 1A
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 80MHz
- Hfe Min: 100
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 3W
- Pulsed Current Icm: 5A
- SMD Marking: FZT857
- Voltage Vcbo: 350V
