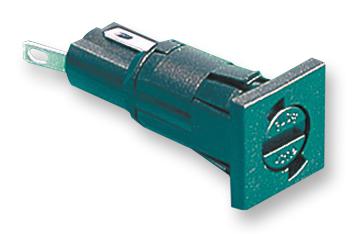

BULGIN LIMITED - FX0369/1 - Fuseholder, Panel Mount, Snap Fit, 250V, 10A, 5 x 20mm, Solder Tags, Bayonet Cap, Screwdriver, PC2
- Fuse Holder Type: Cartridge Fuse Holder
- Fuse Current: 16A
- Fuse Size Held: 5mm x 20mm
- Holder Terminals: Solder Lug
- No. of Fuses: 1Fuses
- Product Range: -
- Voltage Rating VAC: 250V
- Voltage Rating V DC: -
- SVHC: No SVHC (27-Jun-2018)
- Approvals @ 16A: UL & CSA
- Behind Panel Depth: 40mm
- Breakdown Voltage Vbr: 7kV
- Contact Resistance: 10mohm
- Current Rating: 10A
- Fuse Size Metric: 5mm x 20mm
- Insulation Resistance: 100Mohm
- Panel Thickness: 1mm
- Single Flat Panel Cut-out Diameter: 12.8mm
- Working Voltage: 250V
