description

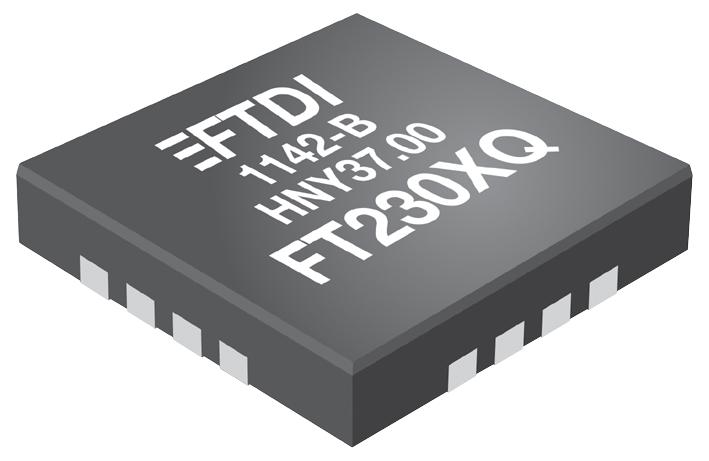

FTDI - FT230XQ-R - USB Interface, USB-UART Converter, USB 2.0, 2.97 V, 5.5 V, QFN, 16 Pins
- USB IC Type: USB-UART Converter
- USB Standard: USB 2.0
- Supply Voltage Min: 2.97V
- Supply Voltage Max: 5.5V
- Interface Case Style: QFN
- No. of Pins: 16Pins
- Data Rate: 3Mbaud
- No. of Ports: 2 Port
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range: 2.97V to 5.5V
- USB Type: Transceiver
