description

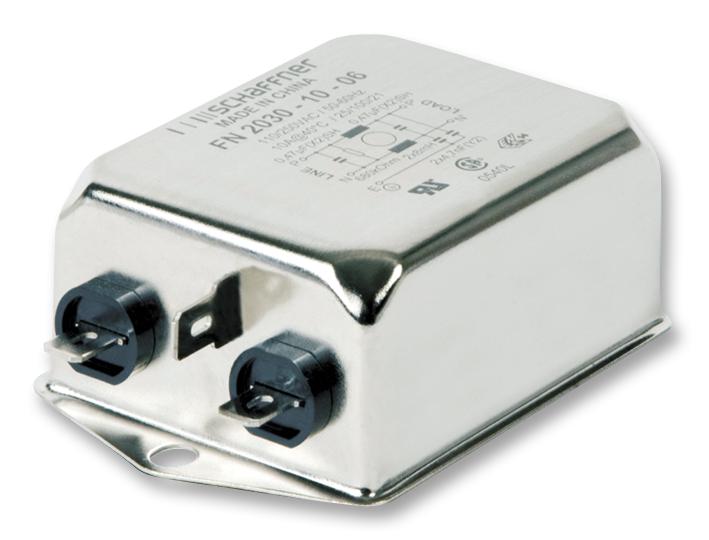

SCHAFFNER - FN2030Z-4-06 - Power Line Filter, Chassis, General Purpose, 250 V, 4 A, Single Phase, 1 Stage, Chassis Mount
- Current Rating: 4A
- Voltage Rating: 250V
- Filter Type: EMI, RFI
- Filter Terminals: Quick Connect
- Inductance Min: 14mH
- Capacitance: 0.33µF
- Leakage Current Max: 520µA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Bleed Resistor Resistance: 1000kohm
- External Depth: 22.3mm
- External Length / Height: 71mm
- External Width: 46.6mm
- Height: 71mm
- Inductance: 14mH
- Leakage Current: 520µA
- Voltage Rating VAC: 250V
