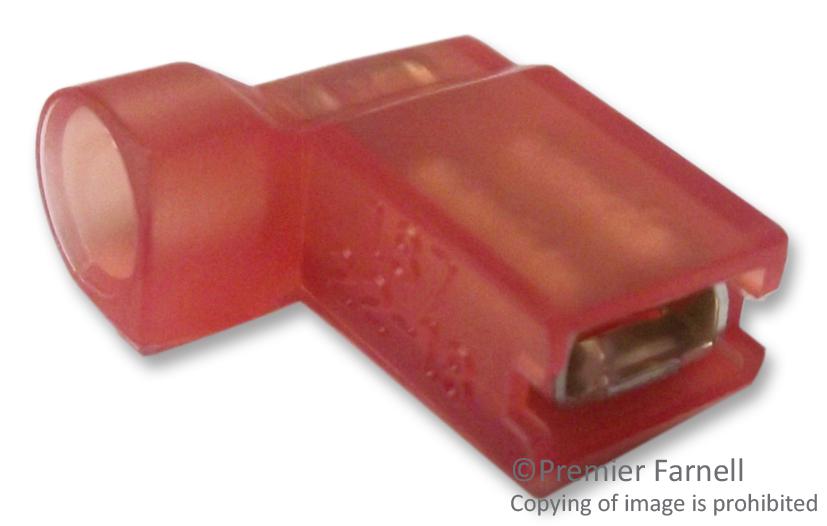

MULTICOMP PRO - FLDNY1-187(8)A - Quick Disconnect Terminal, FLDNY1, Female Quick Disconnect, 4.75mm x 0.81mm, 0.187" x 0.032"
- Product Range: FLDNY1 Series
- Terminal Type: Female Quick Disconnect
- Tab Size - Metric: 4.75mm x 0.81mm
- Tab Size - Imperial: 0.187" x 0.032"
- Wire Size AWG Min: 22AWG
- Wire Size AWG Max: 18AWG
- Insulator Colour: Red
- Conductor Area CSA: 0.75mm²
- Insulator Material: Nylon (Polyamide)
- Terminal Material: Brass
- SVHC: No SVHC (27-Jun-2018)
