FDT86102LZ MOSFET, N Ch, 100V, 6.6a, Sot-223 ONSEMI

ONSEMIUGS :FDT86102LZ Code de commande:2083341

Prix:
Prix ​​promotionnel€3,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (7615 unité)

description

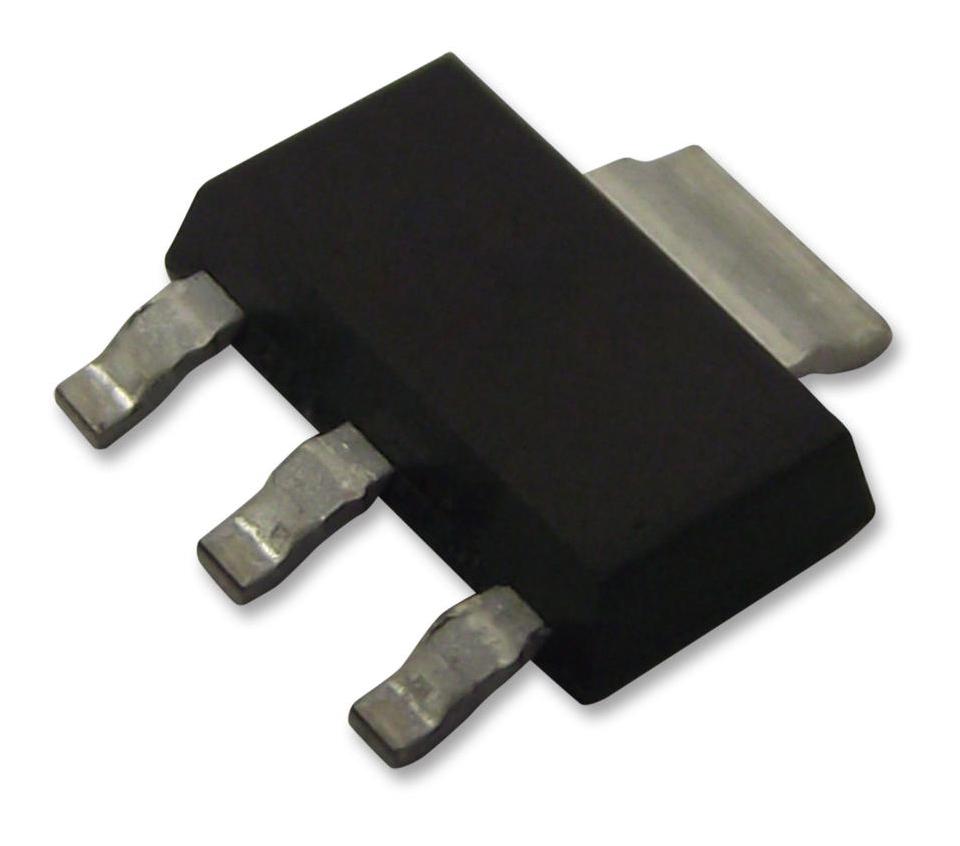

ONSEMI - FDT86102LZ - Power MOSFET, N Channel, 100 V, 6.6 A, 0.022 ohm, SOT-223, Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 6.6A
  • Drain Source Voltage Vds: 100V
  • On Resistance Rds(on): 0.022ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 1.4V
  • Power Dissipation Pd: 2.2W
  • Transistor Case Style: SOT-223
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: PowerTrench Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: Lead (27-Jun-2018)
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pulse Current Idm: 40A
  • Voltage Vgs th Max: 3V
