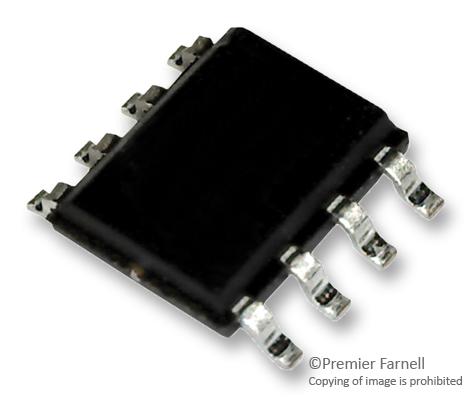

ONSEMI - FDS3672 - Power MOSFET, N Channel, 100 V, 7.5 A, 0.023 ohm, SOIC, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 7.5A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 0.023ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 2.5W
- Transistor Case Style: SOIC
- No. of Pins: 8Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: 7.5A
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 4V
- Voltage Vgs Rds on Measurement: 10V
