FDMC8010 MOSFET, N-Ch, 30V, 75A, Power 33-8 ONSEMI

ONSEMIUGS :FDMC8010 Code de commande:2825164

Prix:
Prix ​​promotionnel€3,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1033 unité)

description

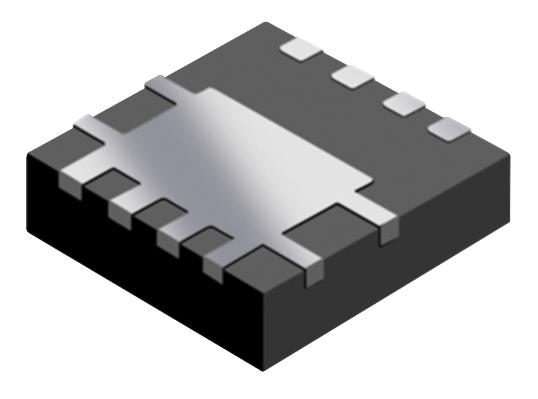

ONSEMI - FDMC8010 - Power MOSFET, N Channel, 30 V, 75 A, 900 µohm, Power 33, Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 75A
  • Drain Source Voltage Vds: 30V
  • On Resistance Rds(on): 900µohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 1.5V
  • Power Dissipation Pd: 54W
  • Transistor Case Style: Power 33
  • No. of Pins: 8Pins
  • Operating Temperature Max: 150°C
  • Product Range: PowerTrench Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: Lead (27-Jun-2018)
