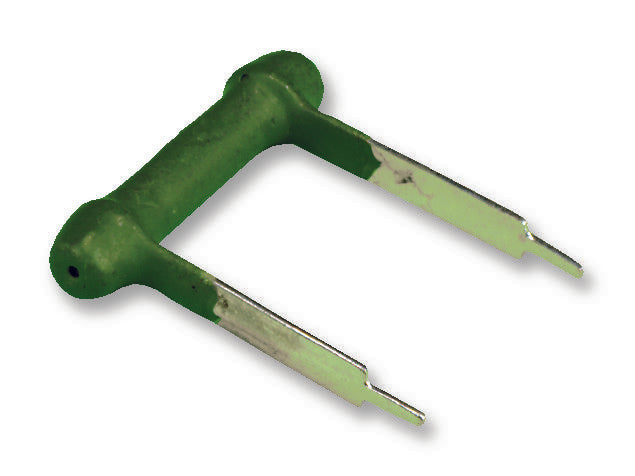

FCB422RJ Res, 22R, 5%, 4W, Radial, Wirewound CGS - Te Connectivity

CGS - TE CONNECTIVITYUGS :FCB422RJ Code de commande:1173934

Prix:
Prix ​​promotionnel€1,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (696 unité)

Documents et téléchargements

description

CGS - TE CONNECTIVITY - FCB422RJ - Through Hole Resistor, 22 ohm, FC, 4 W, ± 5%, Radial Leaded, 9.4 V

  • Resistance: 22ohm
  • Product Range: FC Series
  • Power Rating: 4W
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Radial Leaded
  • Voltage Rating: 9.4V
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: -80ppm/°C to +40ppm/°C
  • Automotive Qualification Standard: -
  • External Depth: 5mm
  • External Length / Height: 18mm
  • External Width: 24mm
  • Full Power Rating Temperature: 70°C
  • No. of Pins: 2Pins
  • Operating Temperature Max: 350°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +350°C
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 250ppm/°C
  • Temperature Coeff. -: -70ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
