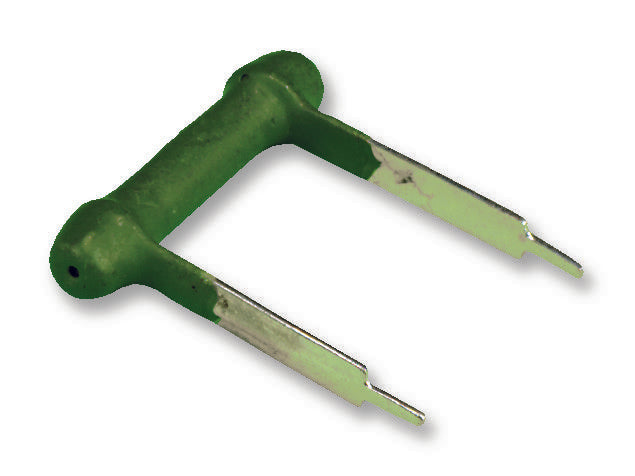

CGS - TE CONNECTIVITY - FCB41K0J - Through Hole Resistor, 1 kohm, FC, 4 W, ± 5%, Radial Leaded, 63.3 V
- Resistance: 1kohm
- Product Range: FC Series
- Power Rating: 4W
- Resistance Tolerance: ± 5%
- Resistor Case Style: Radial Leaded
- Voltage Rating: 63.3V
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 20ppm/°C
- Automotive Qualification Standard: -
- External Depth: 5mm
- External Length / Height: 18mm
- External Width: 24mm
- Full Power Rating Temperature: 70°C
- No. of Pins: 2Pins
- Operating Temperature Max: 350°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +350°C
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 250ppm/°C
- Temperature Coeff. -: -70ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
