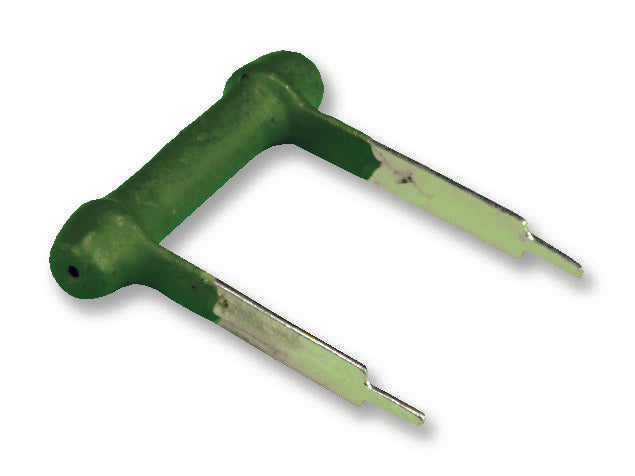

FCB410KJ Res, 10K, 5%, 4W, Radial, Wirewound CGS - Te Connectivity

CGS - TE CONNECTIVITYUGS :FCB410KJ Code de commande:1173952

Prix:
Prix ​​promotionnel€1,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (228 unité)

Documents et téléchargements

description

CGS - TE CONNECTIVITY - FCB410KJ - Through Hole Resistor, 10 kohm, FC, 4 W, ± 5%, Radial Leaded, 200 V

  • Resistance: 10kohm
  • Product Range: FC Series
  • Power Rating: 4W
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Radial Leaded
  • Voltage Rating: 200V
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 20ppm/°C
  • Automotive Qualification Standard: -
  • External Depth: 5mm
  • External Length / Height: 18mm
  • External Width: 24mm
  • Full Power Rating Temperature: 70°C
  • Operating Temperature Max: 350°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +350°C
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 250ppm/°C
  • Temperature Coeff. -: -70ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
