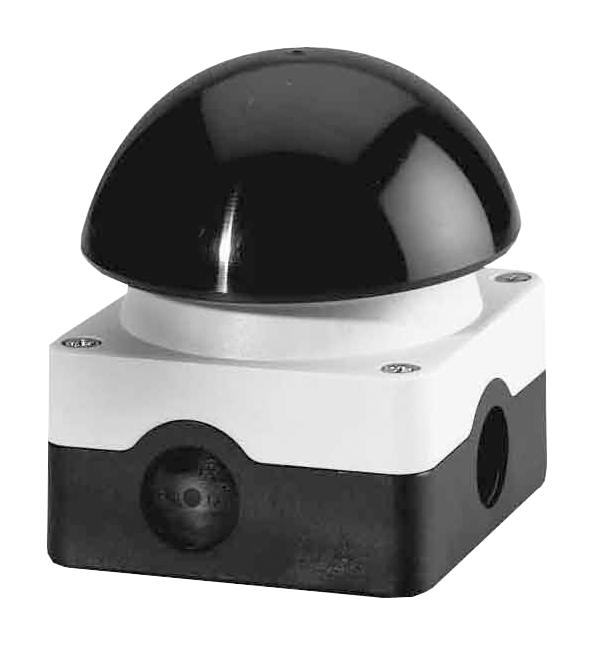

EATON MOELLER - FAK-S-KC11-I - Emergency Stop Switch, SPST-NO, SPST-NC, Momentary Spring Return, Screw, 6 A, 230 V
- Product Range: FAK Series
- Contact Configuration: SPST-NO, SPST-NC
- Switch Operation: (On)
- Contact Current Max: 6A
- Contact Voltage AC Nom: 230V
- External Height: 101mm
- External Width: 85mm
- External Depth: 85mm
- SVHC: No SVHC (17-Dec-2015)
- Contact Voltage DC Nom: 24V
- IP Rating: IP67, IP69K
- Pushbutton Actuator Style: Mushroom
- Switch Terminals: Screw
