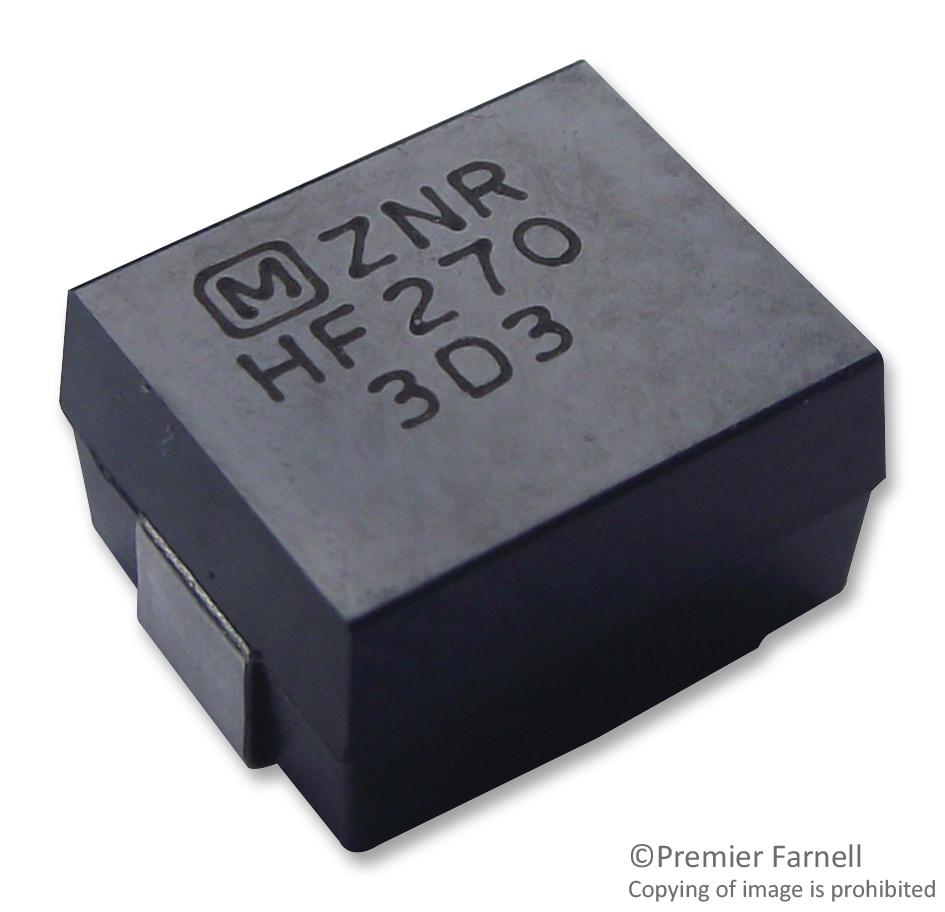

PANASONIC - ERZHF2M270 - TVS Varistor, 27 V, ZNR HF, 43 V, SMD, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: -
- Voltage Rating V DC: 27V
- Product Range: ZNR HF Series
- Clamping Voltage Vc Max: 43V
- Varistor Case Style: SMD
- Varistor Type: Zinc Oxide Non-Linear Resistor (ZNR)
- Peak Surge Current @ 8/20µs: 5A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): -
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
