description

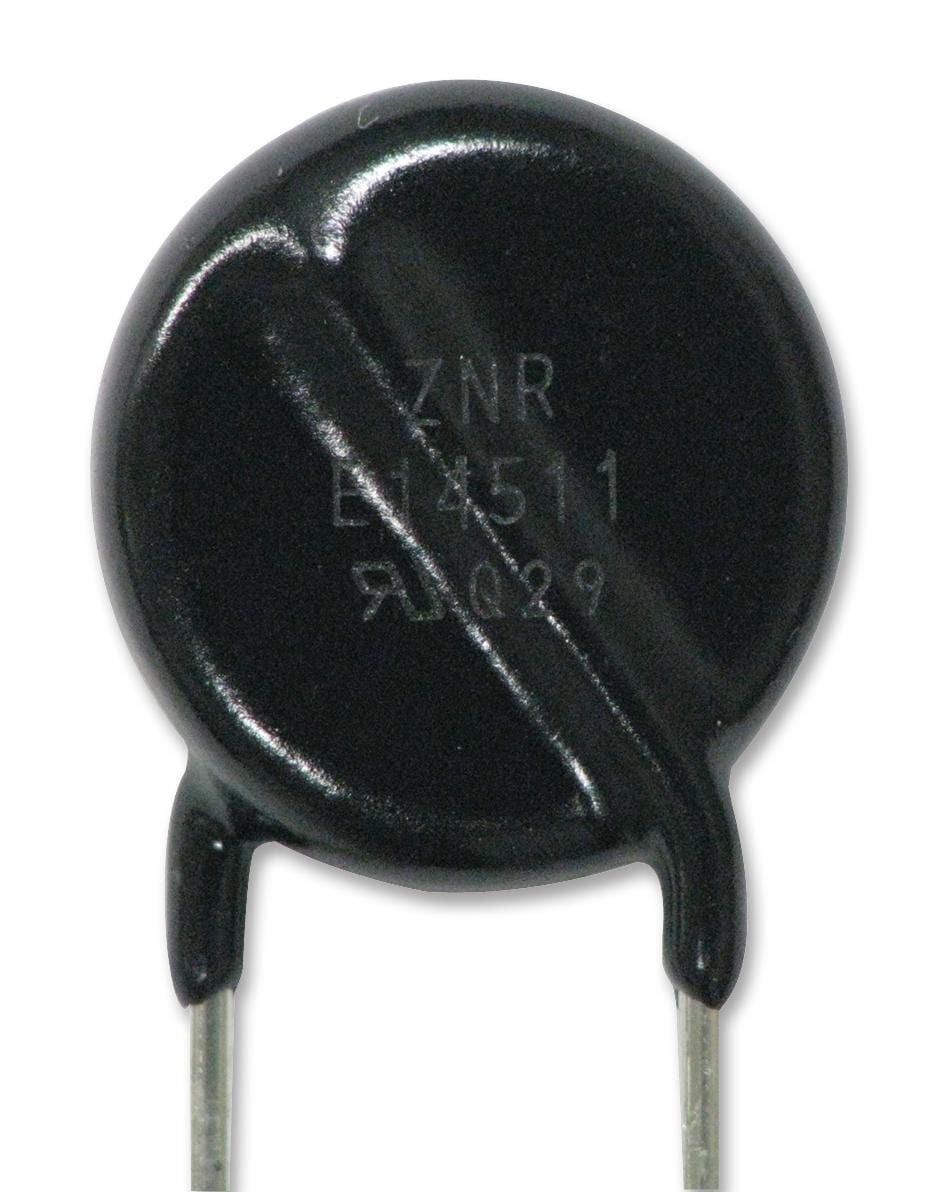

PANASONIC - ERZE11A221 - TVS Varistor, Surge Absorber, 140 V, 180 V, ZNR E11, 360 V, Disc 13mm
- Voltage Rating VAC: 140V
- Voltage Rating V DC: 180V
- Product Range: ZNR E11 Series
- Clamping Voltage Vc Max: 360V
- Varistor Case Style: Disc 13mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 6kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 78J
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Operating Temperature Range: -40°C to +85°C
