description

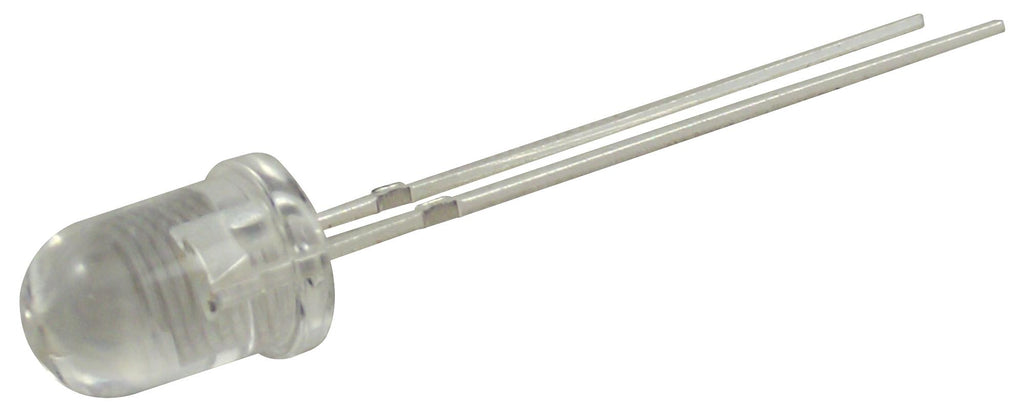

OSA OPTO LIGHT - EOLD-355-525 - UV-A Emitter, 360nm, 1.2mW, 15° Half Intensity, 3.6V/25mA Forward, Top View Through Hole, T-1 3/4
- LED Colour: Ultra Violet
- LED Mounting: Through Hole
- LED Case Size: 5mm
- Forward Current If: 25mA
- Forward Voltage: 3.6V
- Wavelength Typ: -
- Luminous Intensity: -
- Viewing Angle: 15°
- Lens Shape: Dome
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: 5mm
- Diode Case Style: T-1 3/4 (5mm)
- Forward Current If(AV): 25mA
- Forward Voltage VF Max: 4.2V
- No. of Pins: 2Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Peak Wavelength: 360nm
