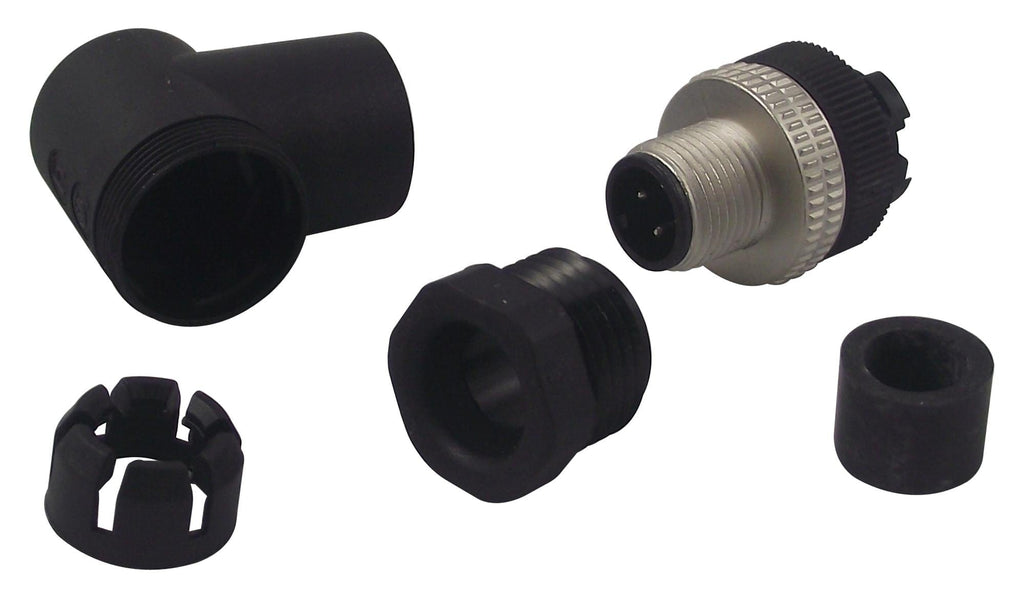

HIRSCHMANN - ELWIST 4012 PG9 - Circular Connector, E Series M12, Cable Mount Plug, 4 Contacts, Screw Pin, Nylon (Polyamide) Body
- Product Range: E Series M12
 - Circular Connector Shell Style: Cable Mount Plug
 - No. of Contacts: 4Contacts
 - Circular Contact Type: Screw Pin
 - Coupling Style: -
 - Connector Body Material: Nylon (Polyamide) Body
 - Connector Body Plating: -
 - Contact Material: Brass
 - Contact Plating: Tin
 - SVHC: Lead (27-Jun-2018)
 - Approval Bodies: UL
 - Cable Diameter Max: 8mm
 - Cable Diameter Min: 6mm
 - Colour: Black
 - Conductor Area CSA: 0.75mm²
 - Connector Insert Type: M12-4
 - Connector Mounting: Cable Mount
 - Connector Shell Size: M12
 - Connector Type: Circular Industrial
 - Contact Gender: Pin
 - Contact Plating: Tin Plated Contacts
 - Contact Termination: Screw
 - Contact Termination Type: Screw
 - Current Rating: 4A
 - Flammability Rating: UL94V-2
 - Gender: Plug
 - IP / NEMA Rating: IP67
 - Operating Temperature Max: +90°C
 - Operating Temperature Min: -25°C
 - Standard: IEC 61076-2-101/IEC 60947-5-2
 - Voltage Rating V DC: 250V
 - Voltage Rating VAC: 250V
