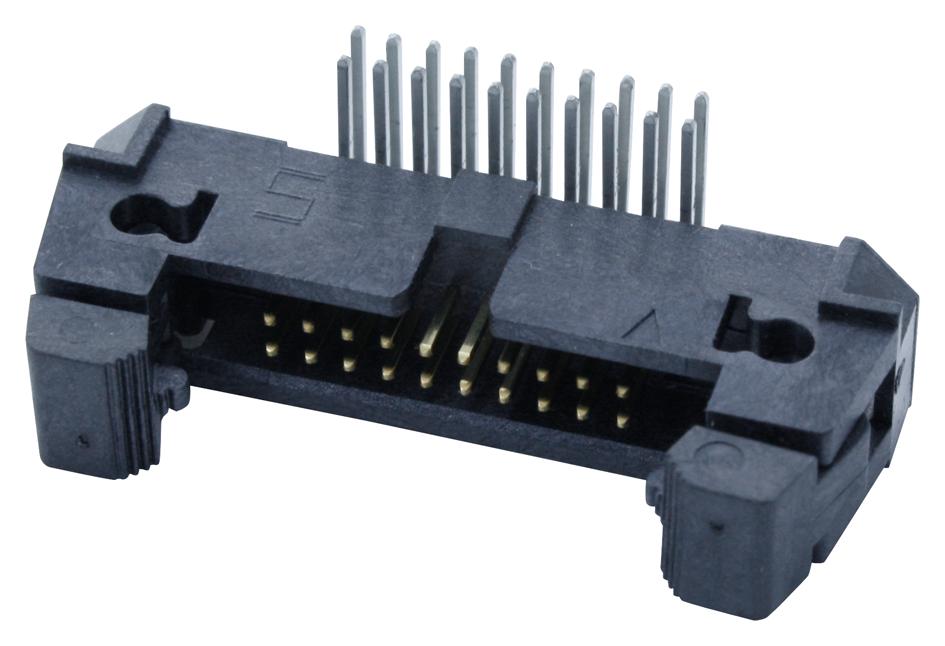

SAMTEC - EHF-110-01-L-D-RA - Pin Header, Right Angle, Wire-to-Board, 1.27 mm, 2 Rows, 20 Contacts, Through Hole Right Angle, EHF
- Pitch Spacing: 1.27mm
- No. of Contacts: 20Contacts
- Gender: Header
- Product Range: EHF Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Current Rating: 1.75A
- Material: LCP
- Operating Temperature Max: +125°C
- Operating Temperature Min: -55°C
