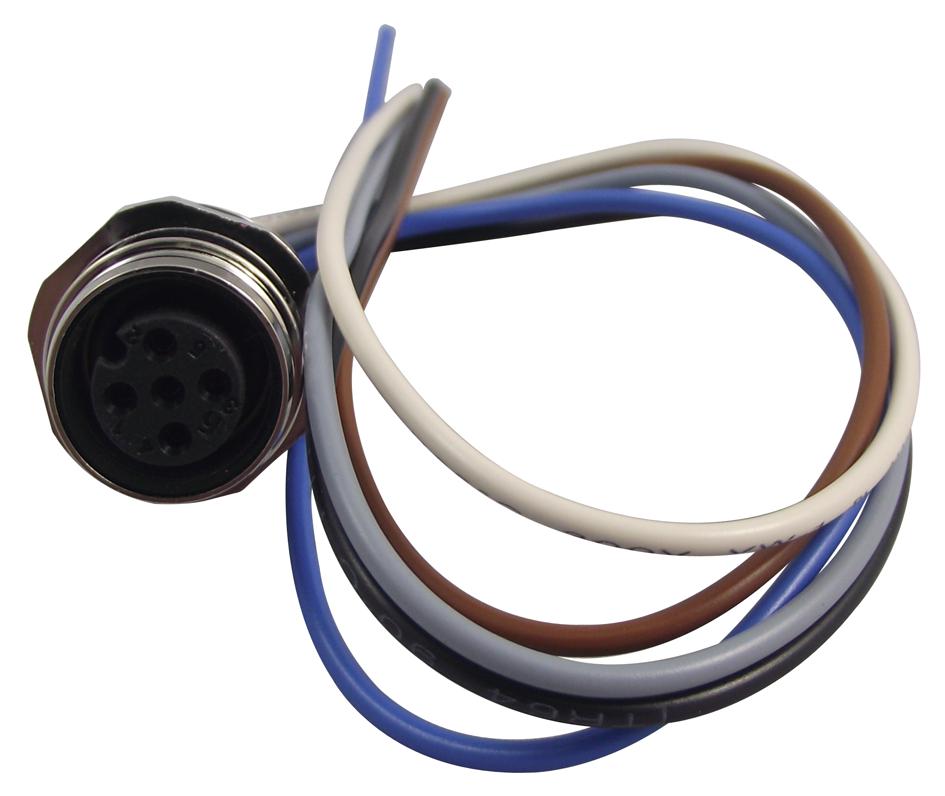

HIRSCHMANN - EF12M5FIX AU - Circular Connector, E Series M12, Panel Mount Receptacle, 5 Contacts, Solder Socket
- Product Range: E Series M12
 - Circular Connector Shell Style: Panel Mount Receptacle
 - No. of Contacts: 5Contacts
 - Circular Contact Type: Solder Socket
 - Coupling Style: -
 - Connector Body Material: Copper Alloy Body
 - Connector Body Plating: -
 - Contact Material: Brass
 - Contact Plating: Gold
 - SVHC: Lead (27-Jun-2018)
 - Approval Bodies: UL
 - Colour: Silver
 - Conductor Area CSA: 0.34mm²
 - Connector Insert Type: M12-5
 - Connector Mounting: Panel Mount
 - Connector Shell Size: M12
 - Connector Type: Circular Industrial
 - Contact Gender: Socket
 - Contact Plating: Gold Plated Contacts
 - Contact Termination: Solder
 - Contact Termination Type: Solder
 - Current Rating: 4A
 - Flammability Rating: UL94V-2
 - Gender: Receptacle
 - IP / NEMA Rating: IP67
 - Operating Temperature Max: +90°C
 - Operating Temperature Min: -25°C
 - Standard: IEC 61076-2-101/IEC 60947-5-2
 - Thread Size: M16 x 1.5
 - Voltage Rating V DC: 50V
 - Voltage Rating VAC: 50V
