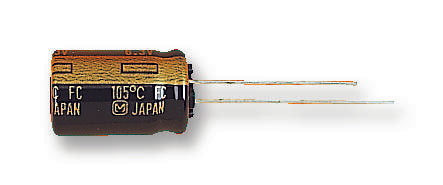

PANASONIC - EEUFC1C470 - Electrolytic Capacitor, 47 µF, 16 V, ± 20%, Radial Leaded, 1000 hours @ 105°C, Polar
- Capacitance: 47µF
- Voltage Rating: 16V
- Product Range: FC Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 5mm
- Lead Spacing: 2mm
- Height: 11mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 1000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Impedance: 0.8ohm
- Lead Diameter: 0.5mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Operating life Time: 1000h
- Ripple Current AC: 175mA
