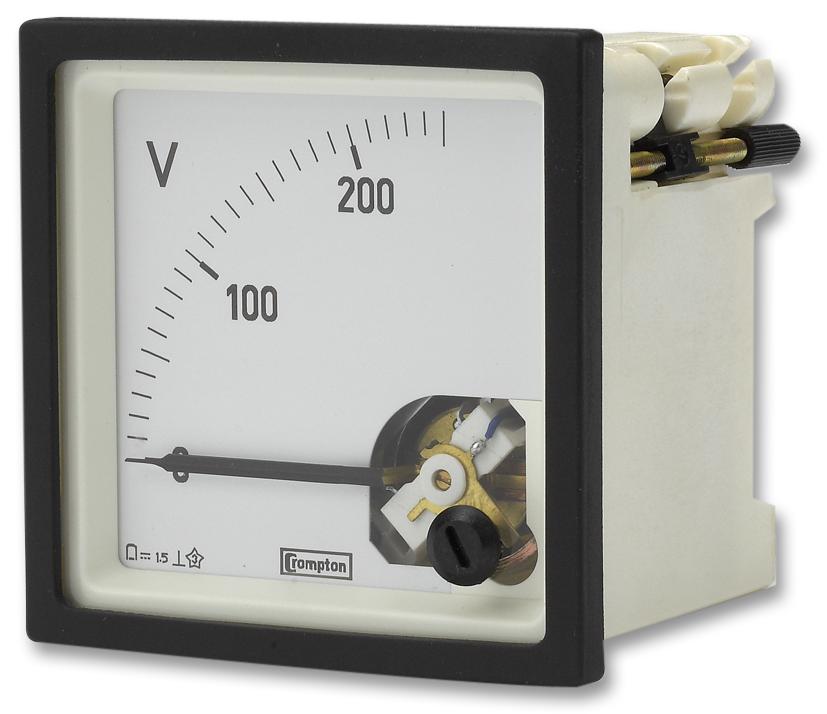

CROMPTON - TE CONNECTIVITY - E243-01V-G-RS-RS - Analogue Panel Meter, Shock Resistant, Calibrated at 23°C, DC Voltage, 0V to 250V, 68 mm, 68 mm
- Meter Function: DC Voltage
- Meter Range: 0V to 250V
- Panel Cutout Height: 68mm
- Panel Cutout Width: 68mm
- Product Range: E243 Series
- External Depth: 64mm
- External Length / Height: 72mm
- External Width: 72mm
- IP / NEMA Rating: IP54
- Meter Size/Dimensions: 72mm x 72mm x 53mm
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Panel Cutout Depth: 68mm
- Power Rating: 4.5VA
- Scale Length: 65mm
