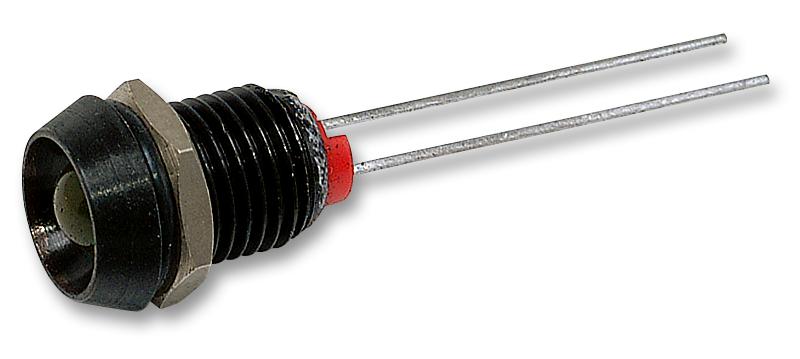

BULGIN LIMITED - DX1090/YL - LED Panel Mount Indicator, Aluminium Bezel, Yellow, 2.1 VDC, 8 mm, 30 mA, 20 mcd, IP66
- LED Colour: Yellow
- Operating Voltage: 2.1VDC
- Mounting Hole Dia: 8mm
- Forward Current If: 30mA
- Luminous Intensity: 20mcd
- IP / NEMA Rating: IP66
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Bezel Diameter: 10.3mm
- Bulb Size: 5mm
- Current If Luminous Intensity: 20mA
- External Diameter: 10.3mm
- External Length / Height: 14.2mm
- Fixing Hole Diameter: 8mm
- Forward Current If Max: 30mA
- Forward Voltage: 2.1V
- Forward Voltage VF Max: 2.1V
- LED / Lamp Size: 5mm
- Luminous Intensity Typ: 6mcd
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- PIV Max: 5V
- Panel Thickness Max: 5.6mm
- Peak Forward Current: 35mA
- Thread Size: .312 x 32 T.P.I.
- Voltage Vf Typ: 2.1V
