description

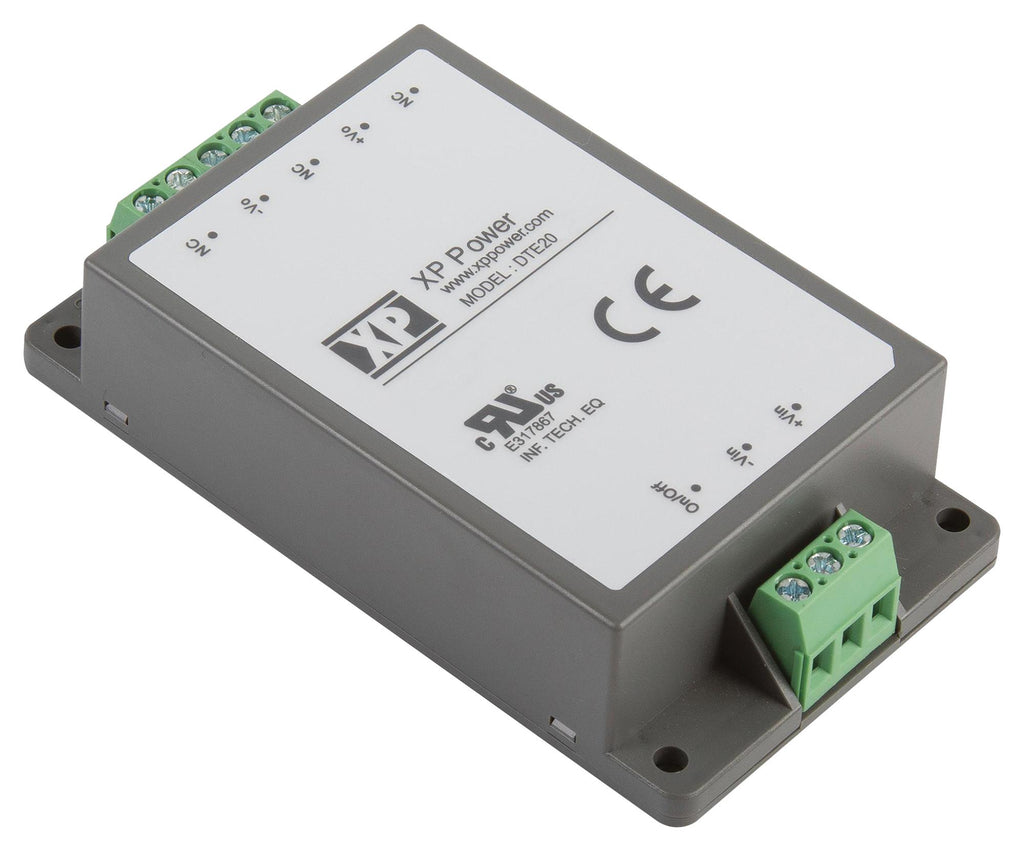

XP POWER - DTE2048S24 - Isolated Chassis Mount DC/DC Converter, Chassis Mount, ITE, 4:1, 20 W, 1 Output, 24 V, 835 mA
- No. of Outputs: 1 Output
- Output Power Max: 20W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 835mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: DTE20 Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 75V
- DC / DC Converter Mounting: Chassis
- DC / DC Converter Output Type: Fixed
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CB, IEC, UL
- DC / DC Converter Type: Module
- Depth: 96mm
- Height: 23.3mm
- Width: 54mm
