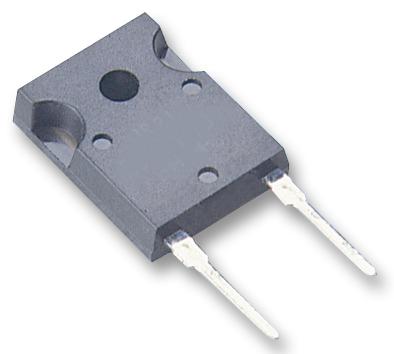

IXYS SEMICONDUCTOR - DPG60I400HA - Fast / Ultrafast Diode, Epitaxial Diode (FRED), 400 V, 60 A, Single, 1.22 V, 45 ns, 600 A
- Repetitive Reverse Voltage Vrrm Max: 400V
- Forward Current If(AV): 60A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.22V
- Reverse Recovery Time trr Max: 45ns
- Forward Surge Current Ifsm Max: 600A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-247
- No. of Pins: 2 Pin
- Product Range: DPG60 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Current Ifsm: 600A
- Current Ir Max: 1µA
- Diode Type: Fast Recovery
- Junction Temperature Tj Max: 175°C
- No. of Pins: 2Pins
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Power Dissipation Ptot Max: 275W
- Reverse Recovery Time trr Typ: 45ns
- Termination Type: Through Hole
