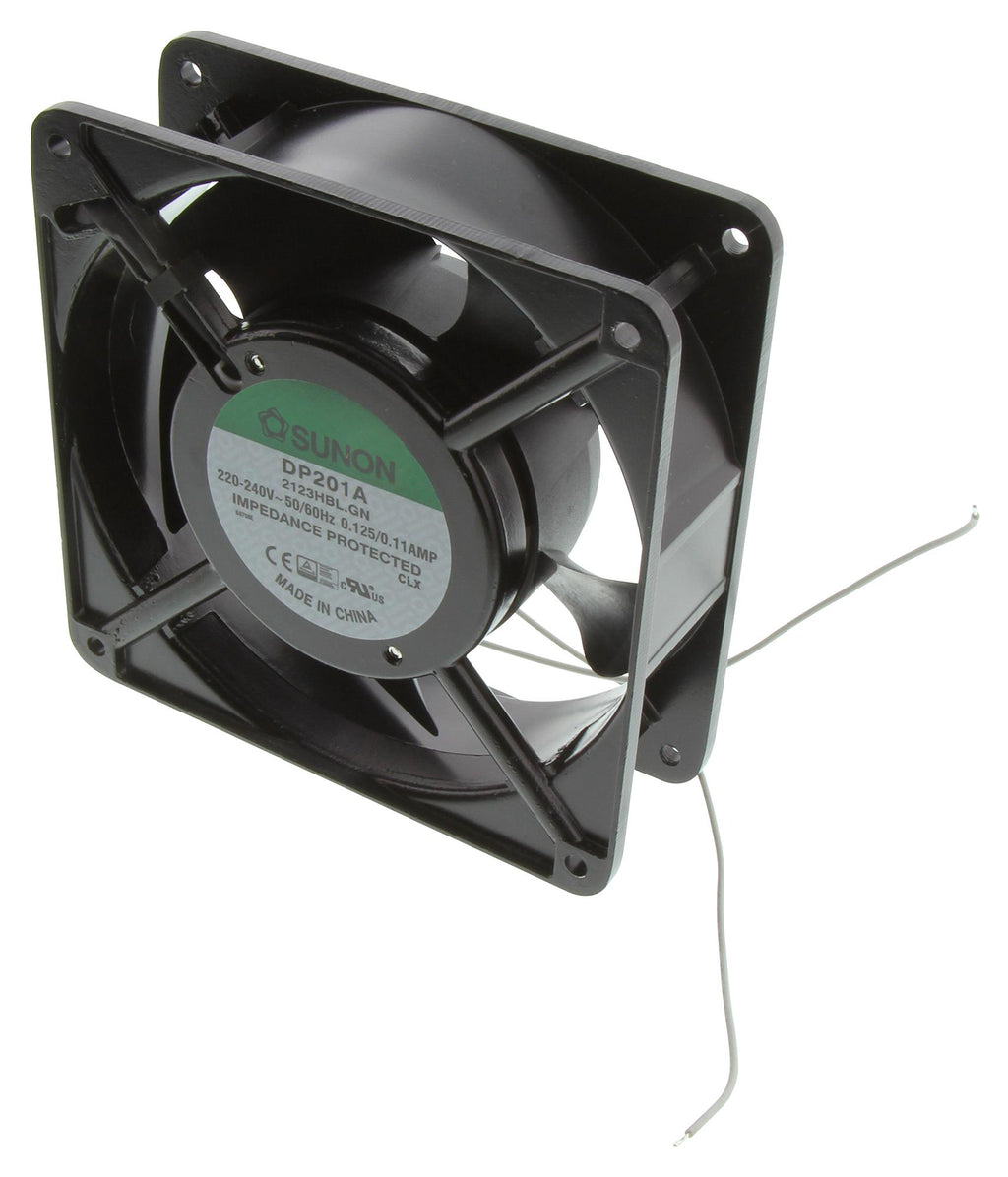

SUNON - DP201A 2123HBL.GN - AC Axial Fan, 220V to 240V, Square, 120 mm, 38 mm, Ball Bearing, 107 CFM
- Supply Voltage: 230V
- Current Type: AC
- Fan Frame Size: 120mm
- External Depth: 38mm
- Noise Rating: 50dBA
- Flow Rate - Imperial: 107cu.ft/min
- Flow Rate - Metric: 3.03m³/min
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 125mA
- Product Range: DP Series
- Power Rating: 20W
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Frame Dimensions: 120mm x 120mm x 38mm
- Power Consumption: 20W
- Speed Range Max: 2750rpm
