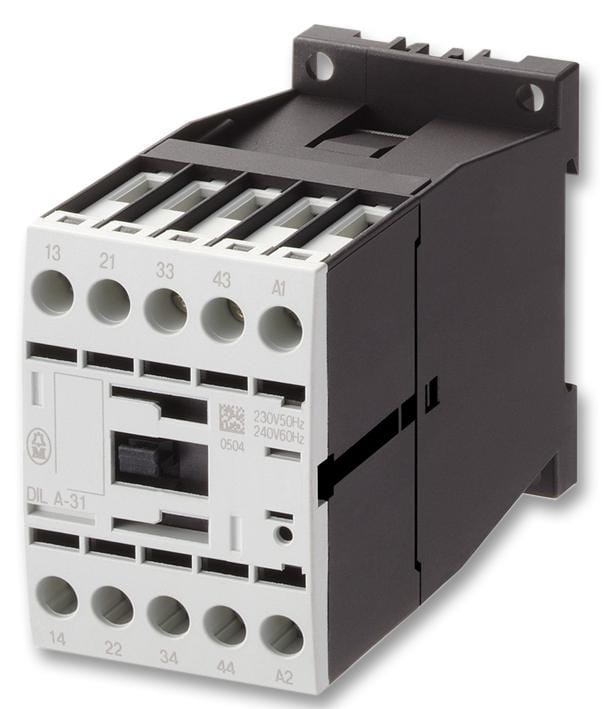

EATON MOELLER - DILA-31(24VDC) - Contactor, DIN Rail, Panel, 690 VAC, 3PST-NO, SPST-NC, 4 Pole
- Load Current Inductive: -
- Relay Mounting: DIN Rail, Panel
- Operating Voltage: 690VAC
- Contact Configuration: 3PST-NO, SPST-NC
- No. of Poles: 4 Pole
- Switching Power AC3: -
- Switching Current AC1: -
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: 24V
- Switching Power AC1: -
- Load Current Resistive: 4A
- Switching Current AC3: -
- Product Range: DILA
- SVHC: No SVHC (17-Dec-2015)
- Approval Bodies: CSA, EN, IEC, UL, VDE
- Coil Voltage: 24V
- Contact Current: 6A
- Contact Current AC Max: 6A
- Contact Current DC Max: 4A
- Contact Current Max: 6A
- Contact Voltage AC Max: 415V
- Contact Voltage AC Nom: 415V
- Contact Voltage VAC: 690V
- Dielectric Voltage Coil to Contact: 400VAC
- Dielectric Voltage Contact to Contact: 400VAC
- External Depth: 117mm
- External Height: 68mm
- External Length / Height: 68mm
- External Width: 45mm
- Input Voltage Max: 24VDC
- Nom Operating Power: 300mW
- Relay Terminals: Screw
- Relay Type: Contactor
