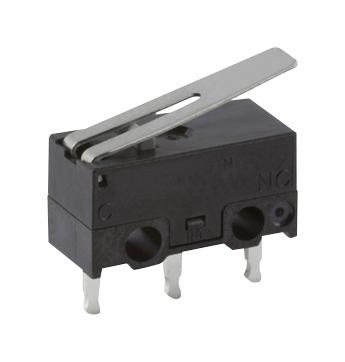

ZF ELECTRONICS - DG23-B1LA - Microswitch, Snap Action, Straight Lever, SPDT, Solder, 50 mA, 30 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Straight Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 50mA
- Contact Voltage DC Nom: 30VDC
- Product Range: DG Series
- Contact Voltage AC Nom: -
- Operating Force Max: 45gf
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Roller Lever
- Actuator Type: Short Lever
- Approval Category: UL Recognised
- Colour: Grey
- Differential Travel Max: 0.51mm
- External Depth: 5.8mm
- External Length / Height: 6.5mm
- External Width: 12.8mm
- Fixing Centres LxW: 6.5mm
- Flammability Rating: UL94V-O
- IP / NEMA Rating: IP40
- Material: PPHS/PBT
- No. of Electrical Operations: 6000
- Operating Force: 0.44N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Over Travel Min: 0.55mm
- Pre-travel: 1.8mm
- Switch Case: PBT (Polybutylene Terephthalate)
