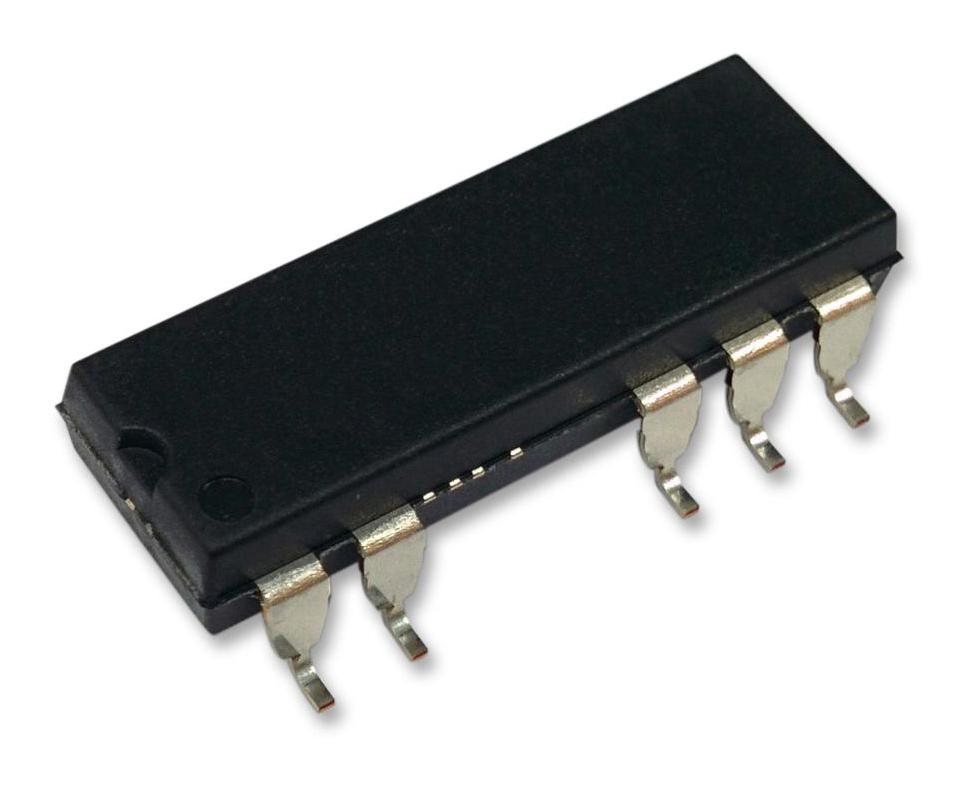

TEXAS INSTRUMENTS - DCP012405BP-U - Isolated Surface Mount DC/DC Converter, ITE, 1:1, 1 W, 1 Output, 5 V, 200 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 200mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: -
- Input Voltage DC Max: 5V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Surface Mount DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 7.611mm
- Height: 5.33mm
- Depth: 19.69mm
- SVHC: No SVHC (15-Jan-2019)
- Frequency: 800kHz
- No. of Outputs: 1Outputs
- No. of Pins: 7Pins
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- Output Voltage Max: 5V
- Power Rating: 1W
- Primary Input Voltage: 24V
- Supply Voltage Max: 26.4V
- Supply Voltage Min: 21.6V
- Voltage Regulator Type: Isolated Converter
