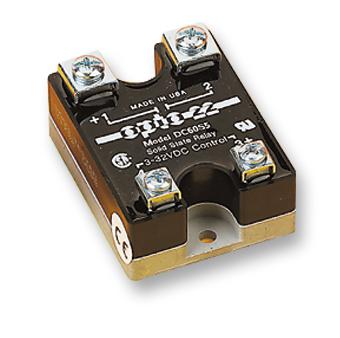

OPTO 22 - DC60S5 - Solid State Relay, 5 A, 60 VDC, Panel Mount, Screw, DC Switch
- Contact Configuration: -
- Load Current: 5A
- Operating Voltage Max: 60VDC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: DC Switch
- Operating Voltage Min: 5VDC
- Control Voltage Min: 3VDC
- Control Voltage Max: 32VDC
- Product Range: DC Series
- SVHC: No SVHC (27-Jun-2018)
- Blocking voltage: 60V
- Control Current Voltage: 60V
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Pickup: 3V
- Control Voltage Range: 3V DC to 32V DC
- Control Voltage Type: DC
- Current Rating: 5A
- Input Impedance: 1000ohm
- Isolation Voltage: 4kV
- Leakage Current: 1µA
- Load Current Min: 20mA
- Load Current RMS Max: 5A
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Voltage: 60
- Operating Voltage Range: 5V DC to 60V DC
- Output Type: Bipolar Transistor
- Signal Drop-out Voltage: 1V
- Surge Current: 10A
- Voltage Drop @ Rated Current: 1.5V
