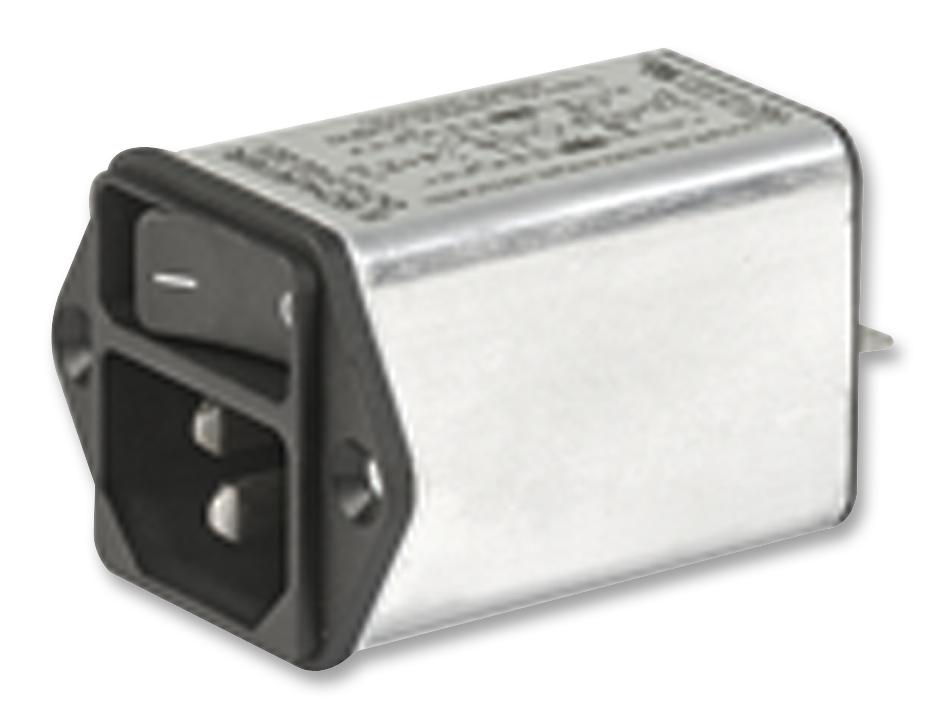

SCHURTER - DC12.5102.001 - Filtered IEC Power Entry Module, IEC C14, General Purpose, 10 A, 250 VAC, 2-Pole Switch
- Product Range: DC12 Series
- Gender: Plug
- Voltage Rating: 250VAC
- Current Rating: 10A
- Connector Mounting: Panel Mount
- Contact Termination Type: Quick Connect
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, IEC, UL
- Contact Termination: Quick Connect
- External Depth: 46.05mm
- External Length / Height: 34.4mm
- External Width: 30.2mm
- Flammability Rating: UL94V-0
- Voltage Rating VAC: 250V
