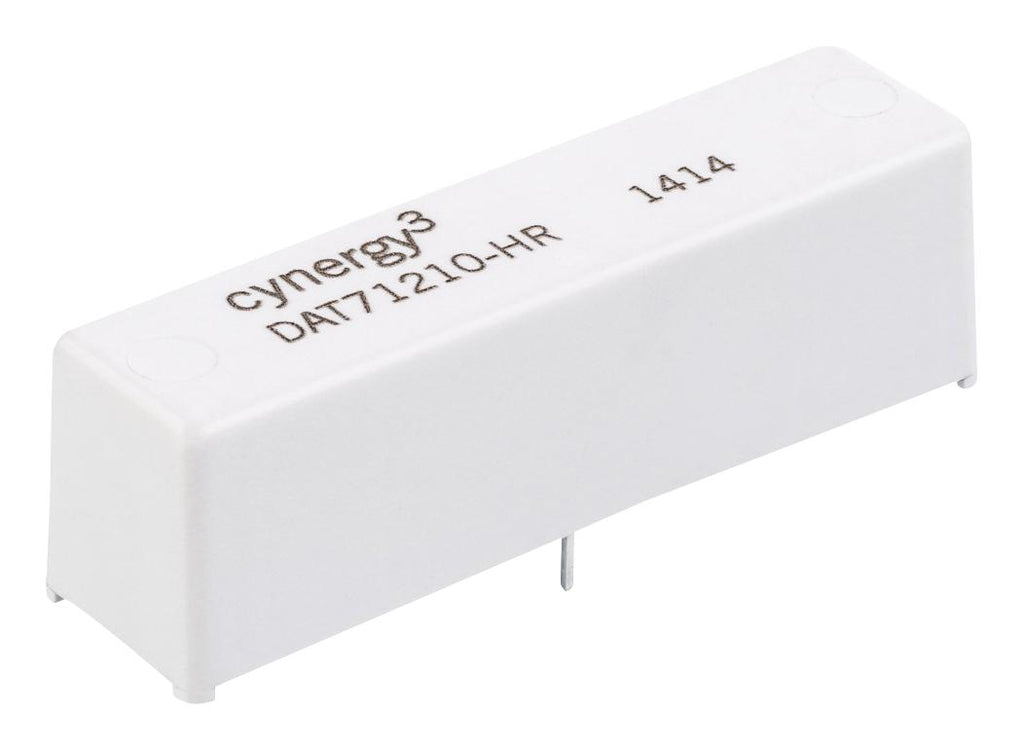

SENSATA / CYNERGY3 - DAT71210 - Reed Relay, SPST-NO, 12 VDC, D, Through Hole, 150 ohm, 2 A
- Contact Configuration: SPST-NO
- Coil Voltage: 12VDC
- Product Range: D Series
- Relay Mounting: Through Hole
- Coil Resistance: 150ohm
- Switching Current Max: 2A
- Switching Voltage Max: 7kV
- SVHC: No SVHC (17-Dec-2015)
- Coil Voltage Min: 9V
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 2A
- Contact Current DC Max: 2A
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 7kV
- Contact Voltage DC Max: 7kV
- Dropout Voltage Vdo: 1.25V
- External Depth: 60mm
- External Height: 18.5mm
- External Length / Height: 18.5mm
- External Width: 15.8mm
- Must Actuate Voltage: 9V
- Must Release Voltage: 1.25V
- No. of Electrical Operations: 10
- No. of Mechanical Operations: 1000000
- Nom Operating Voltage: 9V
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Operating Time: 3ms
- Pull-in Voltage: 9.0 V
- Release Time: 2ms
- Switch Current Max: 2A
- Switch Power Max: 50W
