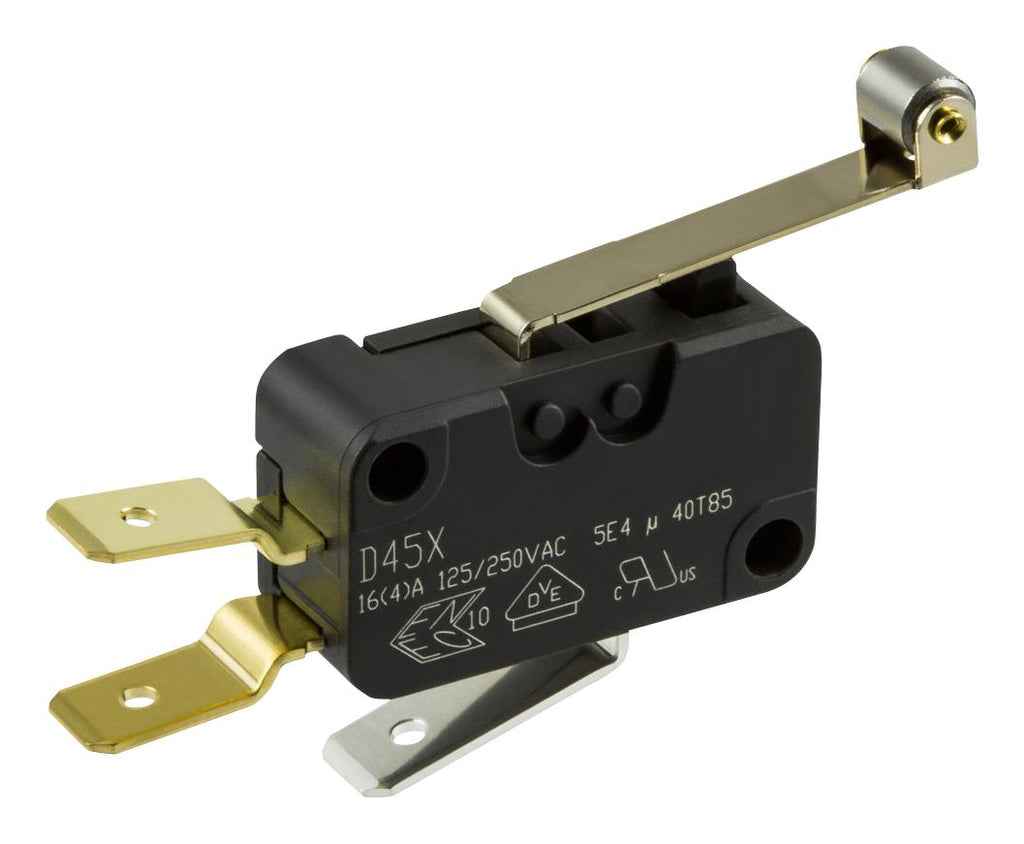

ZF ELECTRONICS - D459-V3RD - Microswitch, Snap Action, Roller Lever, SPDT, Quick Connect, 16 A
- Microswitch Type: Snap Action
- Microswitch Actuator: Roller Lever
- Contact Configuration: SPDT
- Switch Terminals: Quick Connect
- Contact Current Max: 16A
- Contact Voltage DC Nom: -
- Product Range: D4 Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 50gf
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Roller Lever
- Actuator Type: Medium Roller Lever
- Approval Bodies: ENEC, VDE
- Approval Category: UL Recognised
- Contact Current AC: 16A
- Contact Current AC Max: 16A
- Contact Voltage AC Max: 250V
- Differential Travel Max: 0.8mm
- External Depth: 10.31mm
- External Length / Height: 16.2mm
- External Width: 27.8mm
- Flammability Rating: UL 94V-O
- Material: PET
- Operating Force: 0.49N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Over Travel Min: 2.2mm
- Pre-travel: 3.2mm
- Switch Case: PET (Polyethylene Terephthalate)
