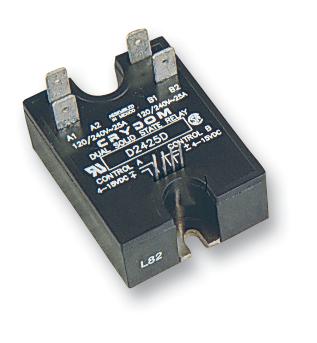

SENSATA/CRYDOM - D2425D - Solid State Relay, DPST-NO, 25 A, 280 VAC, Panel Mount, Quick Connect, Zero Crossing
- Contact Configuration: DPST-NO
 - Load Current: 25A
 - Operating Voltage Max: 280VAC
 - Relay Mounting: Panel
 - Relay Terminals: Quick Connect
 - Switching Mode: Zero Crossing
 - Operating Voltage Min: 24VAC
 - Control Voltage Min: 4VDC
 - Control Voltage Max: 15VDC
 - Product Range: 1 Series
 - SVHC: No SVHC (12-Jan-2017)
 - Blocking voltage: 500V
 - Control Voltage DC Max: 15VDC
 - Control Voltage DC Min: 4VDC
 - Control Voltage Range: 4V DC to 15V DC
 - Control Voltage Type: DC
 - External Depth: 57.15mm
 - External Diameter: 4.5mm
 - External Length / Height: 21mm
 - External Width: 44.5mm
 - Fixing Centres: 47.5mm
 - Isolation Voltage: 4kV
 - Load Current Min: 150mA
 - Load Current RMS Max: 25A
 - Must Release Voltage: 1V
 - Operating Temperature Max: 80°C
 - Operating Temperature Min: -30°C
 - Operating Voltage Range: 24Vrms to 280Vrms
 - Output Type: Thyristor
 - RMS Load Current Min: 40mA
 - RMS Load Voltage Max: 280V
 - RMS Load Voltage Min: 24V
 - Rate of Voltage Change dv / dt: 200V/µs
 - Resistance: 310ohm
 - Single Cycle Surge Current: 350A
