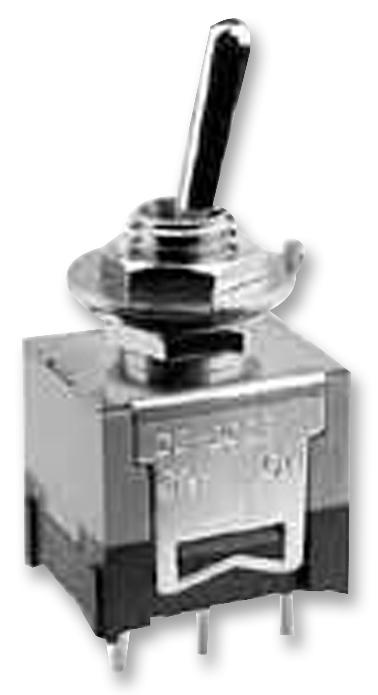

NKK SWITCHES - D22022P - Toggle Switch, On-On, DPDT, Non Illuminated, D2, Panel Mount, 100 mA
- Switch Operation: On-On
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: D2 Series
- Contact Current Max: 100mA
- Switch Mounting: Panel
- Contact Voltage AC Nom: 48V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 48V
- SVHC: Lead (15-Jan-2019)
- Actuation Type: Bat
- Bush Thread Length: 7.2mm
- Contact Current AC Max: 100mA
- Contact Current DC Max: 100mA
- Contact Resistance Max: 50mohm
- Contact Voltage AC Max: 48VAC
- Contact Voltage AC Min: 20mV
- Contact Voltage DC Max: 48VDC
- Contact Voltage DC Min: 20mV
- Dielectric Strength VDC: 1000VAC
- External Depth: 13.9mm
- External Length / Height: 14.4mm
- External Width: 12.4mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Insulation Resistance Voltage: 500VDC
- Lead Spacing: 5.08mm
- Lever Length: 10.5mm
- No. of Electrical Operations: 50000
- No. of Mechanical Operations: 100000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Panel Cutout Diameter: 6.5mm
- Pin Diameter: 0.8mm
- Pin Length: 3.6mm
