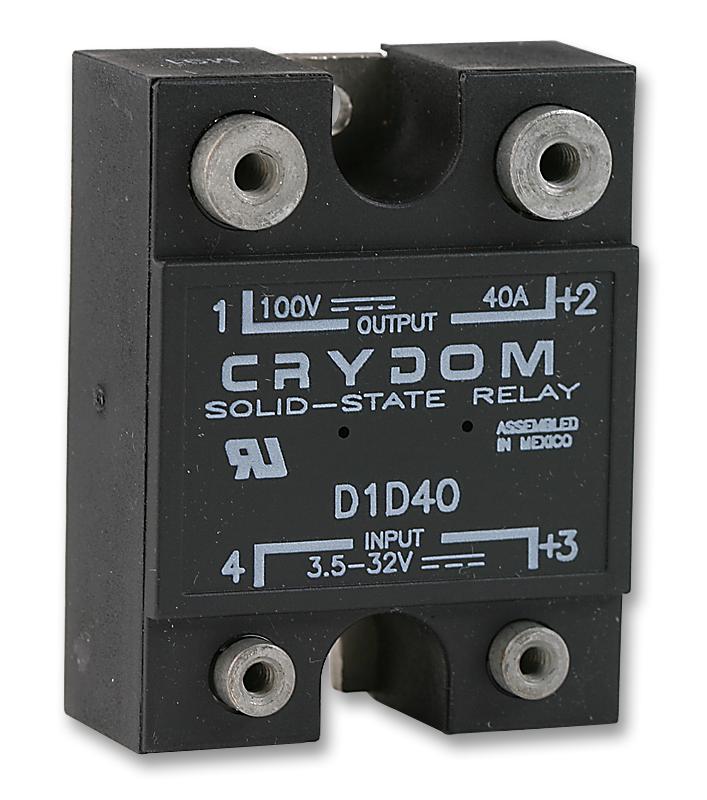

SENSATA/CRYDOM - D1D40 - Solid State Relay, SPST-NO, 40 A, 100 VDC, Panel Mount, Screw, DC Switch
- Contact Configuration: SPST-NO
- Load Current: 40A
- Operating Voltage Max: 100VDC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: DC Switch
- Operating Voltage Min: 0VDC
- Control Voltage Min: 3.5VDC
- Control Voltage Max: 32VDC
- Product Range: 1-DC Series
- SVHC: No SVHC (07-Jul-2017)
- Control Current Max: 28mA
- Control Current Typ: 1.6mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3.5VDC
- Control Voltage Range: 3.5V DC to 32V DC
- Control Voltage Type: DC
- Isolation Voltage: 2.5kV
- Load Current Min: 20mA
- Load Current RMS Max: 40A
- Load Voltage DC Max: 100V
- On State Resistance Max: 0.05ohm
- Operating Voltage Range: 0V DC to 100V DC
- Output Type: MOSFET
- RMS Load Voltage Max: 100VDC
- Single Cycle Surge Current: 106A
- Surge Current: 106A
- Turn Off Time: 1ms
- Turn On Time: 0.1ms
