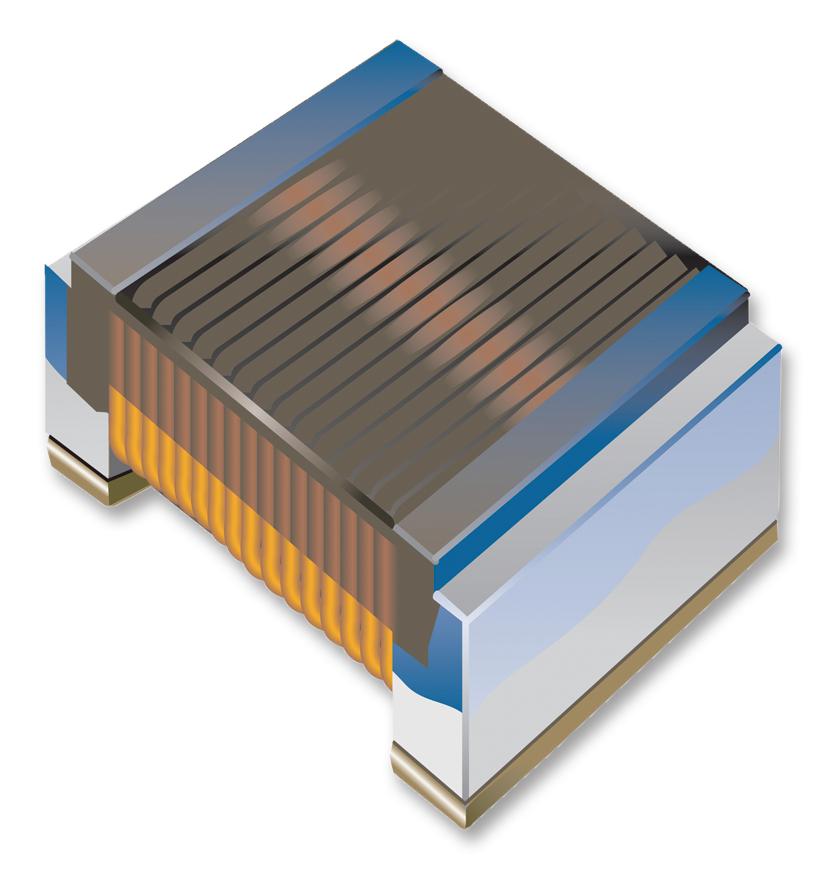

BOURNS - CW252016-R27J - Power Inductor (SMD), 270 nH, 500 mA, Unshielded, CW252016, 2.5mm x 2mm x 1.6mm
- Inductance: 270nH
- RMS Current (Irms): 500mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): -
- Product Range: CW252016 Series
- Power Inductor Case: 2.5mm x 2mm x 1.6mm
- DC Resistance Max: 0.75ohm
- Inductance Tolerance: ± 5%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 45
- Q Test Frequency: 100MHz
- Self Resonant Frequency Min: 600MHz
