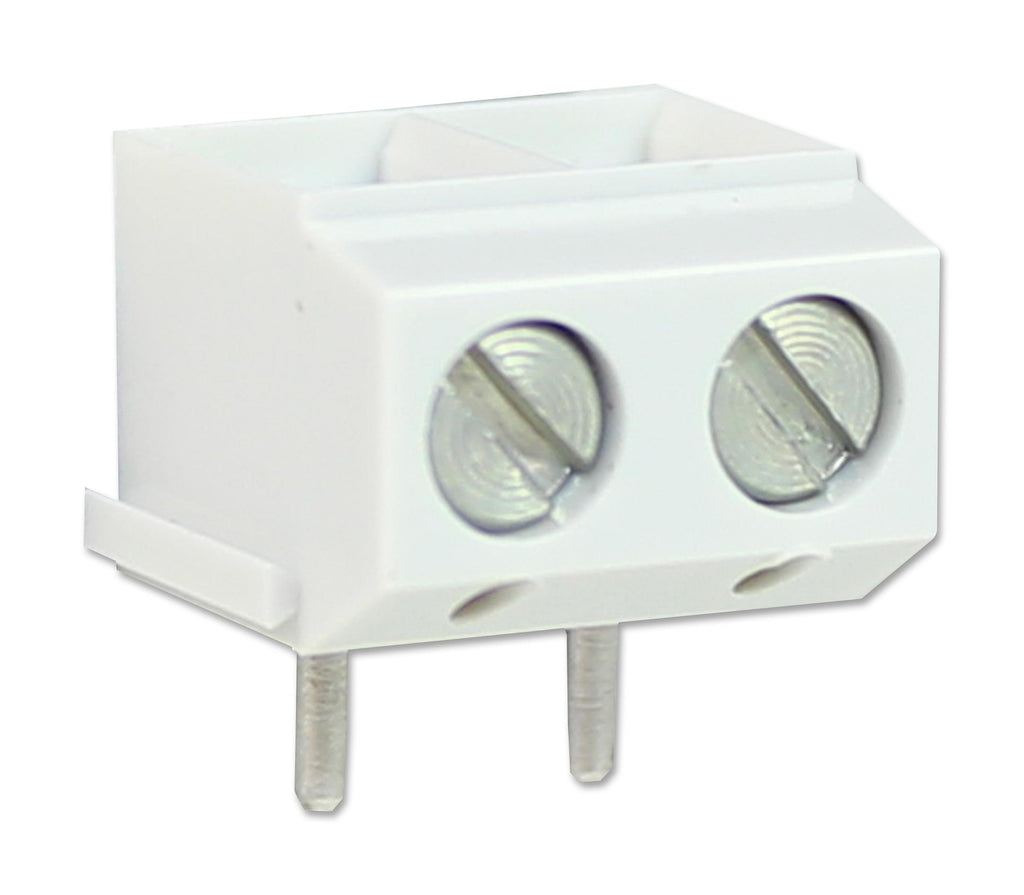

CAMDENBOSS - CTB5050/2 - Standard Terminal Block, Wire to Board, CTB5050, 2 Contacts, 5 mm, Terminal Block, PCB, PCB Mount
- Product Range: CTB5050 Series
- No. of Contacts: 2Contacts
- Pitch Spacing: 5mm
- Connector Type: Terminal Block, PCB
- Connector Mounting: PCB Mount
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 30AWG
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Block Orientation: Through Hole Right Angle
- Conductor Area CSA: 1.5mm²
- No. of Positions: 2Ways
- Rated Current: 14A
- Rated Voltage: 300V
- Voltage Rating VAC: 250V
- Wire Connection Method: Screw
