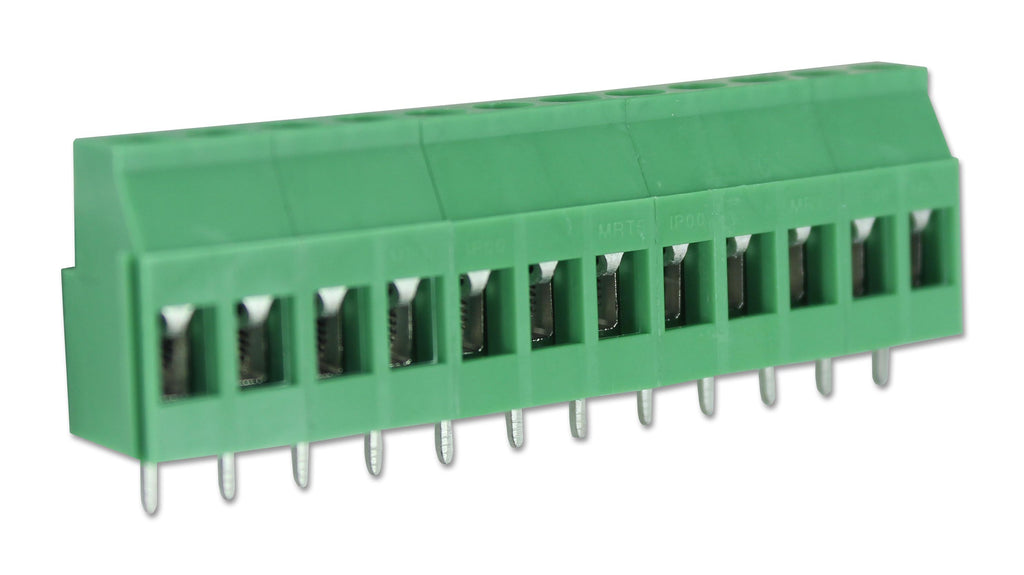

CAMDENBOSS - CTB0708/12 - Standard Terminal Block, Wire to Board, CTB0708, 12 Contacts, 5.08 mm, Terminal Block, PCB
- Product Range: CTB0708 Series
- No. of Contacts: 12Contacts
- Pitch Spacing: 5.08mm
- Connector Type: Terminal Block, PCB
- Connector Mounting: PCB Mount
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 30AWG
- Contact Plating: Nickel Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Block Orientation: Through Hole Right Angle
- Conductor Area CSA: 4mm²
- Rated Current: 16A
- Rated Voltage: 300V
- Voltage Rating VAC: 320V
- Wire Connection Method: Screw
