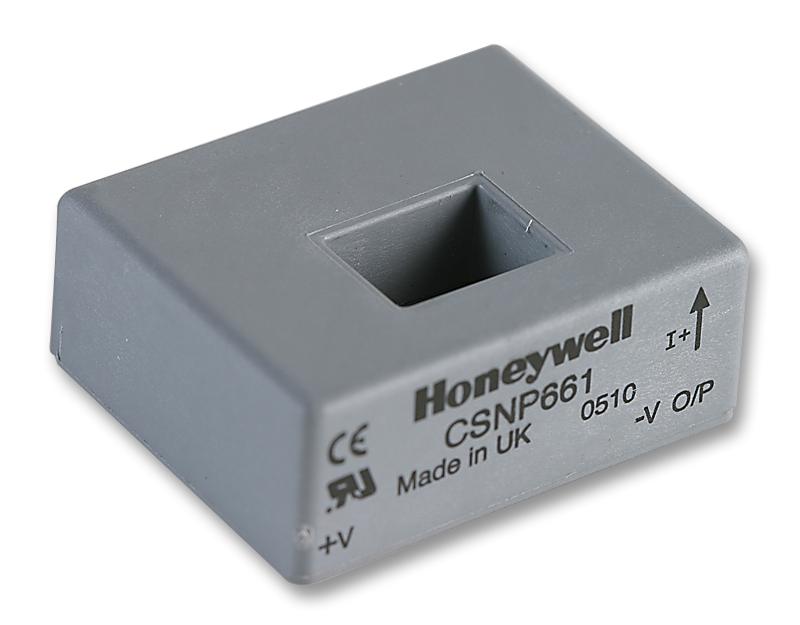

HONEYWELL - CSNP661 - Current Sensor, CSN Series, Solid State, -90A to 90A, Closed Loop Output, 12 Vdc to 15 Vdc
- Sensor Output: Closed Loop
- Supply Voltage DC Min: 12V
- Supply Voltage DC Max: 15V
- Current Measuring Range DC: -90A to 90A
- Current Measuring Range AC: -90A to 90A
- Response Time: 0.5µs
- Accuracy %: 0.5%
- Product Range: CSN Series
- SVHC: No SVHC (07-Jul-2017)
- Accuracy: 0.5%
- Approval Bodies: CSA, UL
- Current Consumption: 10mA
- Current Range AC: 0 to 90A
- Current Range DC: 0 to 90A
- Current Rating: 50A
- External Depth: 14.5mm
- External Length / Height: 29.8mm
- External Width: 36.5mm
- Fixing Centres: 25mm
- Frequency Max: 150kHz
- Frequency Min: 0Hz
- Height: 29.8mm
- Hole Diameter: 13.5mm
- Linearity: ± 0.1%
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Output Current: 50mA
- Output Type: Current
- Supply Voltage Range DC: ± 12V to ± 15V
- Total Current Rating: 90A
- Transducer Function: Current
