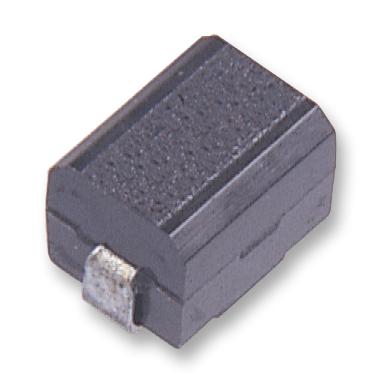

BOURNS - CM453232-R68ML - Wirewound Inductor, 680 nH, 0.4 ohm, 135 MHz, 500 mA, 1812 [4532 Metric], CM453232
- Inductance: 680nH
- Product Range: CM453232 Series
- DC Current Rating: 500mA
- High Frequency Inductor Case: 1812 [4532 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.4ohm
- Inductance Tolerance: ± 20%
- Self Resonant Frequency Min: 135MHz
- SVHC: No SVHC (15-Jan-2018)
- Impedance Frequency: 25.2MHz
- Inductor Case Style: 1812 [4532 Metric]
- Operating Temperature Max: 100°C
- Operating Temperature Min: -25°C
