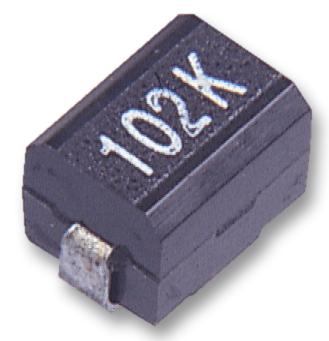

BOURNS - CM453232-1R0KL - Wirewound Inductor, 1 µH, 0.5 ohm, 100 MHz, 450 mA, 1812 [4532 Metric], CM453232
- Inductance: 1µH
- Product Range: CM453232 Series
- DC Current Rating: 450mA
- High Frequency Inductor Case: 1812 [4532 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.5ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 100MHz
- SVHC: No SVHC (15-Jan-2018)
- Impedance Frequency: 7.96MHz
- Inductor Case Style: 1812 [4532 Metric]
- Operating Temperature Max: 100°C
- Operating Temperature Min: -25°C
