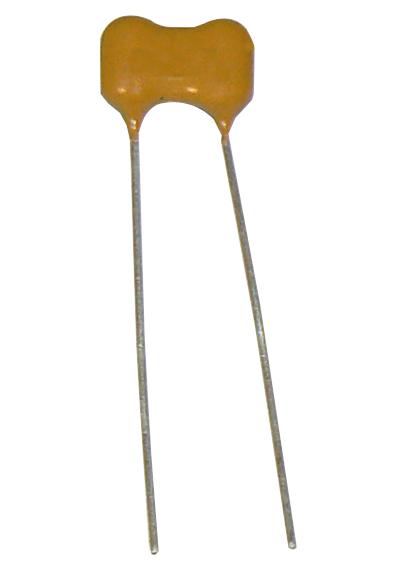

CORNELL DUBILIER - CD19FD152FO3F - Mica Capacitor, Standard Dipped, 1500 pF, 500 V, ± 1%, PC Pin, 8.7 mm, Radial Leaded
- Capacitance: 1500pF
- Voltage Rating: 500V
- Capacitance Tolerance: ± 1%
- Product Range: Type CD19 Series
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 8.7mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Tolerance ±: ± 1%
- Capacitor Mounting: Through Hole
- External Depth: 5.8mm
- External Length / Height: 13.2mm
- External Width: 16.8mm
- Height: 13.2mm
- Lead Diameter: 0.8mm
- Lead Length: 2.54mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Temperature Coeff. +: 70ppm/°C
- Temperature Coeff. -: 0ppm/°C
- Temperature Coefficient: 0ppm/°C to +70ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
- Voltage Rating V DC: 500V
