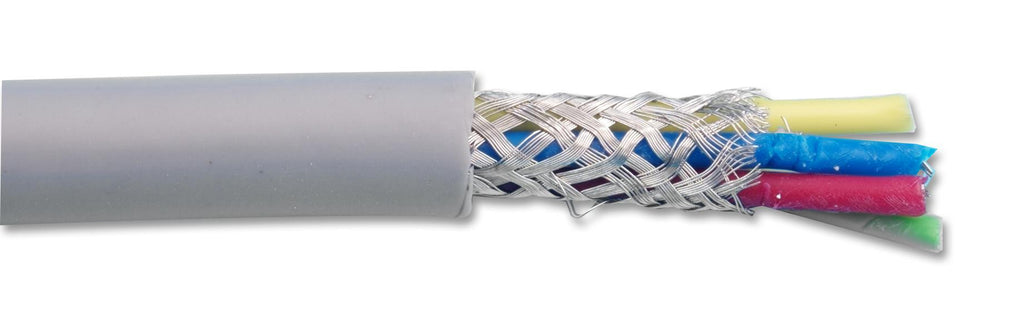

PRO POWER - CBBR4179 - Multicore Cable, Screened, 4 Core, 0.5 mm², 328 ft, 100 m
- Cable Shielding: Screened
- No. of Cores: 4Core
- Wire Gauge: -
- Conductor Area CSA: 0.5mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 16 x 0.2mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 7.2mm
- Voltage Rating: -
- Product Range: -
- Conductor Make-up: 16 / 0.2mm
- Outer Diameter: 7.2mm
- Screen Type Primary: 112/0.10 tinned copper braid
- Screen Type, Secondary: Aluminium foil
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
