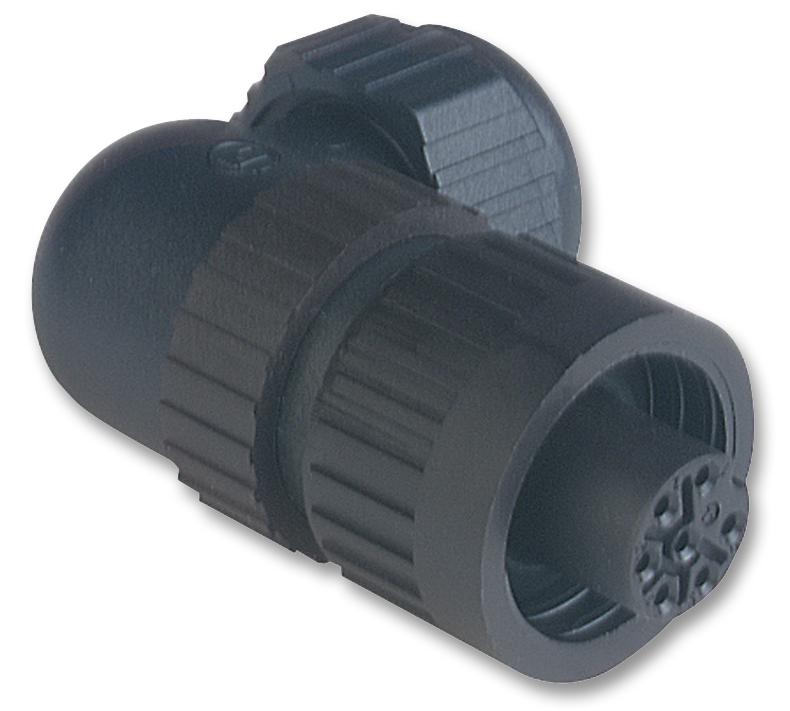

HIRSCHMANN - CA6WLD - Circular Connector, 6+PE, CA Series, Cable Mount Receptacle, 7 Contacts, Solder Socket, Threaded
- Product Range: CA Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 7Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide) Body
- Connector Body Plating: -
- Contact Material: Copper Alloy
- Contact Plating: Gold
- SVHC: Lead (27-Jun-2018)
- Approval Bodies: UL, VDE
- Colour: Black
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 5mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 10A
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP67
- Voltage Rating V DC: 250V
- Voltage Rating VAC: 250V
- Wire Area Size Max: 0.75mm²
