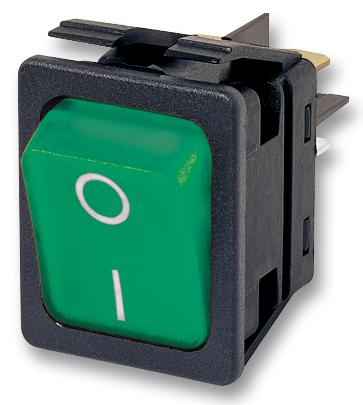

ARCOLECTRIC (BULGIN LIMITED) - C6053ALNAM - Rocker Switch, On-Off, DPST, Illuminated, Panel Mount, Green, 6050
- Illumination: Illuminated
 - Contact Configuration: DPST
 - Switch Operation: On-Off
 - Actuator / Cap Colour: Green
 - Switch Mounting: Panel
 - Contact Current Max: 16A
 - Contact Voltage AC Nom: 250V
 - Contact Voltage DC Nom: 28V
 - Product Range: 6050 Series
 - SVHC: No SVHC (27-Jun-2018)
 - Bezel Depth: 31.5mm
 - Bezel Width: 25mm
 - Colour: Green
 - Contact Current @ Contact Voltage AC Max: 16A
 - Contact Current AC Max: 16A
 - Contact Resistance: 20mohm
 - Contact Voltage AC Max: 250V
 - External Depth: 31.5mm
 - Illumination Colour: Green
 - Inrush Current: 150A
 - Insulation Resistance: 100Mohm
 - No. of Electrical Operations: 1000
 - No. of Mechanical Operations: 50000
 - Operating Temperature Max: 125°C
 - Operating Temperature Min: 0°C
 - Panel Cutout Size: 30.1 x 22.2 mm
 - Panel Cutout Width: 22.2mm
 - Panel Cutout length: 30.1mm
 - Panel Thickness Max: 3mm
 - Panel Thickness Min: 0.75mm
 - Tab Blade Thickness: 0.8mm
 - Tab Width: 6.3mm
